N60ENTM40.10

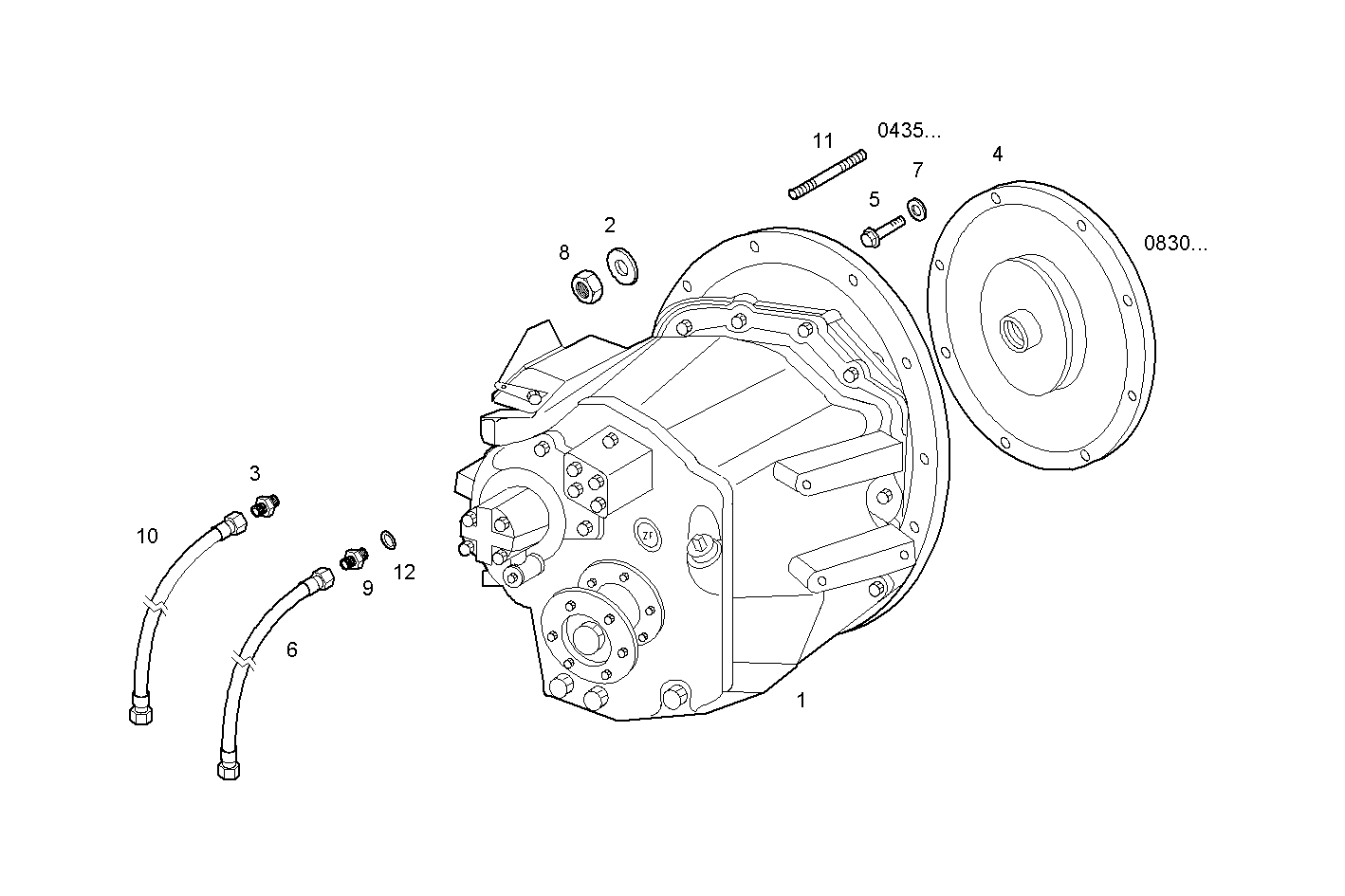

A53050502/03 STERN DRIVE - Konrad
| Item | Part number | Description |
|---|---|---|
| 1 | 8045796 | MARINE GEAR |
| 2 | 17095004 | WASHER Ø10X18X2 MM |
| 3 | 8101073 | PIPE SOCKET |
| 4 | 8045800 | FLEXIBLE COUPLING |
| 5 | 16607625 | SCREW M10X25 |
| 6 | 8105620 | HOSE |
| 7 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 8023701 | PIPE SOCKET |
| 10 | 4935778 | OIL HOSE |
| 11 | 17368024 | STUD M10X25X30 |
| 12 | 11270460 | GASKET Ø17X21X1,5 MM |
