N60ENTM40.10

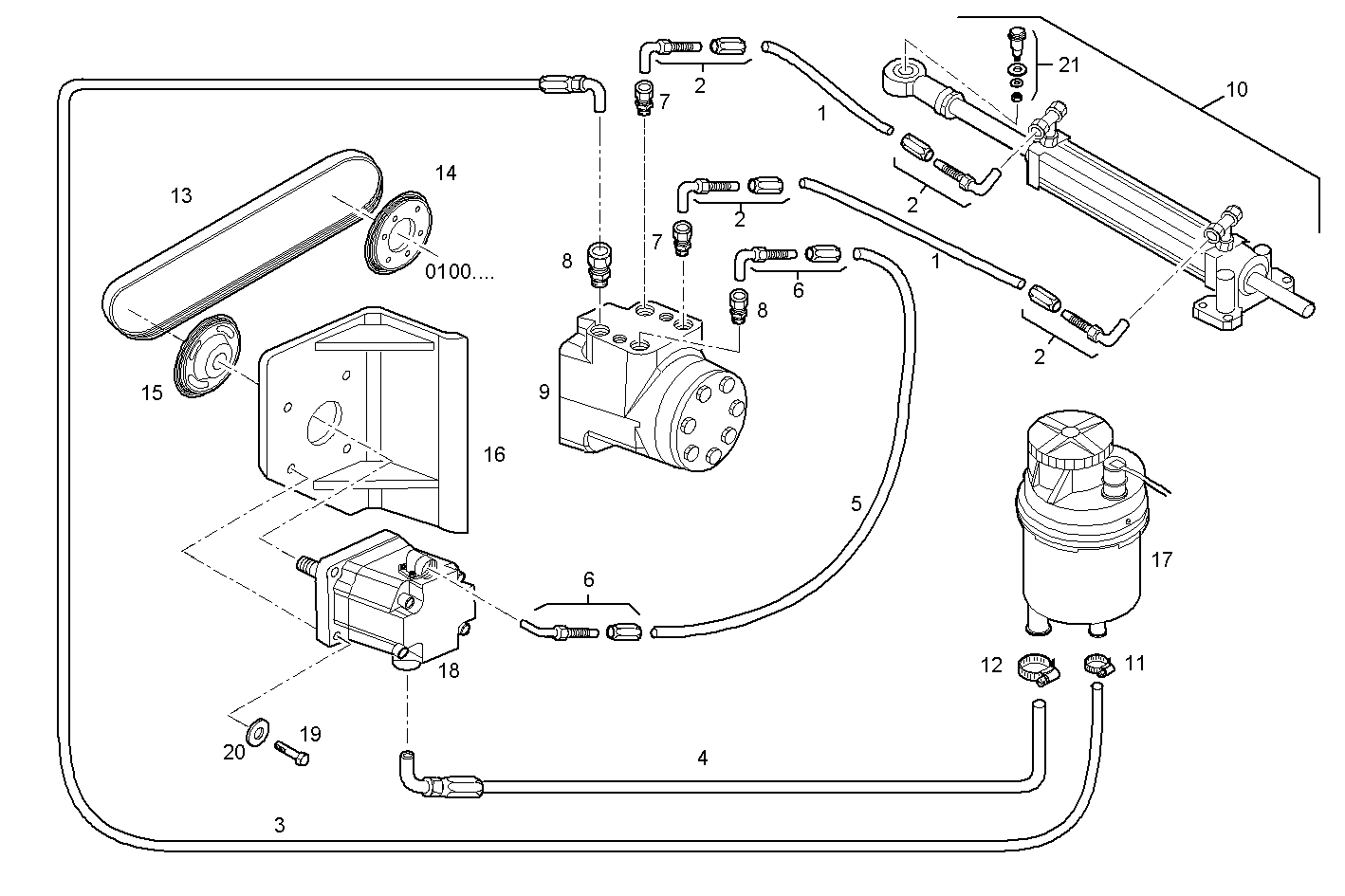

A53050502/04 STERN DRIVE - Konrad
| Item | Part number | Description |
|---|---|---|
| 1 | 8046476 | OIL HOSE |
| 2 | 8046477 | ELBOW COUPLING |
| 3 | 8046480 | OIL HOSE |
| 4 | 8046481 | OIL HOSE |
| 5 | 8046478 | OIL HOSE |
| 6 | 8046479 | ELBOW COUPLING |
| 7 | 8046210 | THREADED UNION |
| 8 | 8046211 | THREADED UNION |
| 9 | 8046089 | POWER STEERING |
| 10 | 8046084 | HYDROSTEER.SHAFT |
| 11 | 18088392 | CLIP Ø16/25 MM |
| 12 | 18088493 | CLIP |
| 13 | 8046546 | V-BELT |
| 14 | 504078266 | COMPRESSOR PULLEY |
| 15 | 8046087 | PULLEY |
| 16 | 8046090 | RETAINER |
| 17 | 8188038 | HYDROSTEER.FILTER |
| 18 | 8046086 | HYDRAULIC PUMP |
| 19 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 21 | 8046470 | PIN |
