N60ENTM40.10

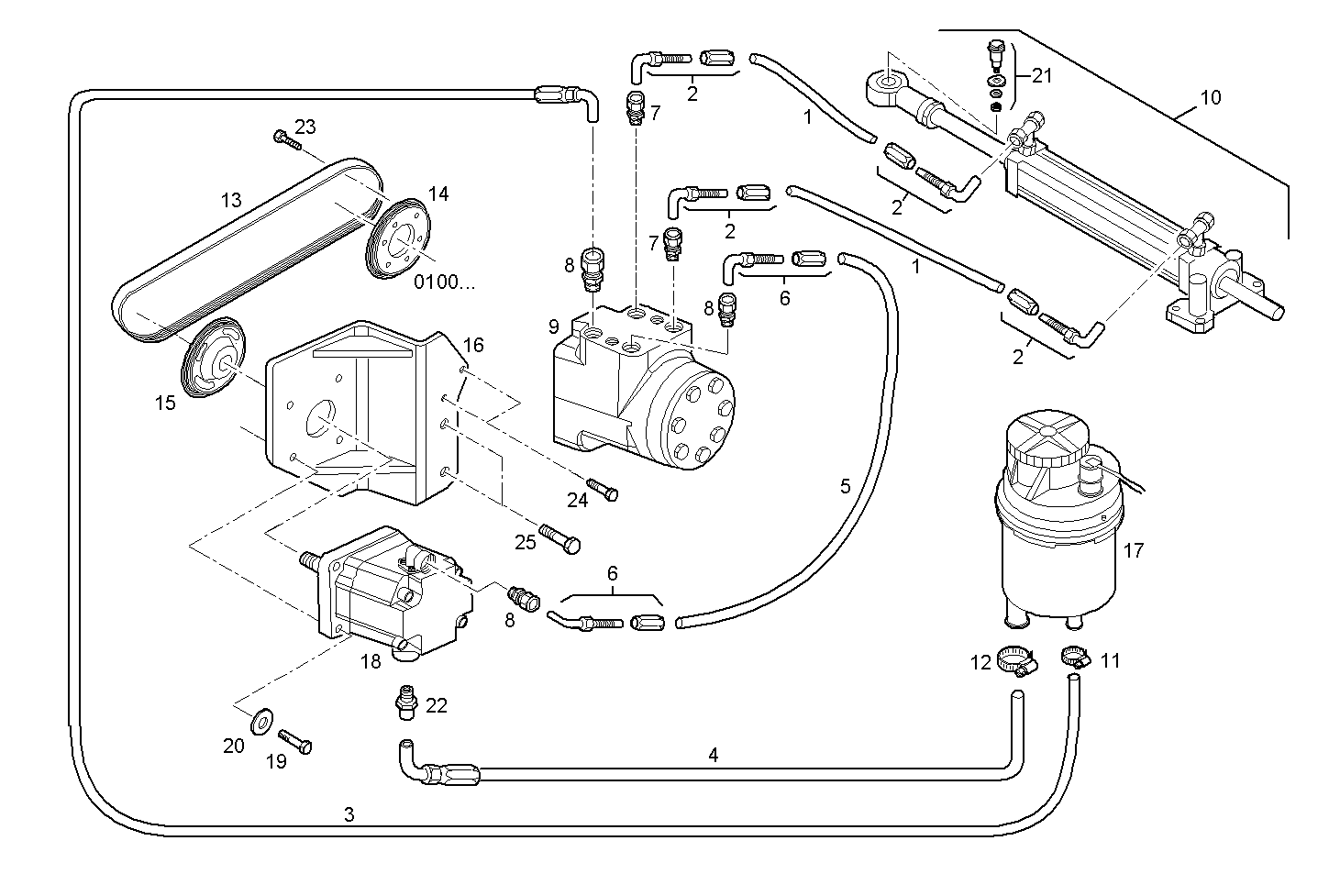

A56060001/01 STEERING COMMAND

Iveco/FPT STEERING COMMAND

Item Part number Description
1 8046476 OIL HOSE
2 8046477 ELBOW COUPLING
3 8046480 OIL HOSE
4 8046481 OIL HOSE
5 8046478 OIL HOSE
6 8046479 ELBOW COUPLING
7 8046210 THREADED UNION
8 8046211 THREADED UNION
9 8046089 POWER STEERING
10 8045856 HYDROSTEER.SHAFT
11 18088392 CLIP Ø16/25 MM
12 18088493 CLIP
13 8046546 V-BELT
14 504078266 COMPRESSOR PULLEY
15 8046087 PULLEY
16 8046090 RETAINER
17 8188038 HYDROSTEER.FILTER
18 8046086 HYDRAULIC PUMP
19 16690724 CYLIND-HEAD SCREW M8X30 MM
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
21 8046470 PIN
22 8046212 THREADED UNION
23 16288424 HEXAGON BOLT M10X1,25X25 MM
24 16673735 HEXAGON BOLT M8X25 MM
25 16677735 HEXAGON BOLT M12X25 MM
