N60ENTM40.10

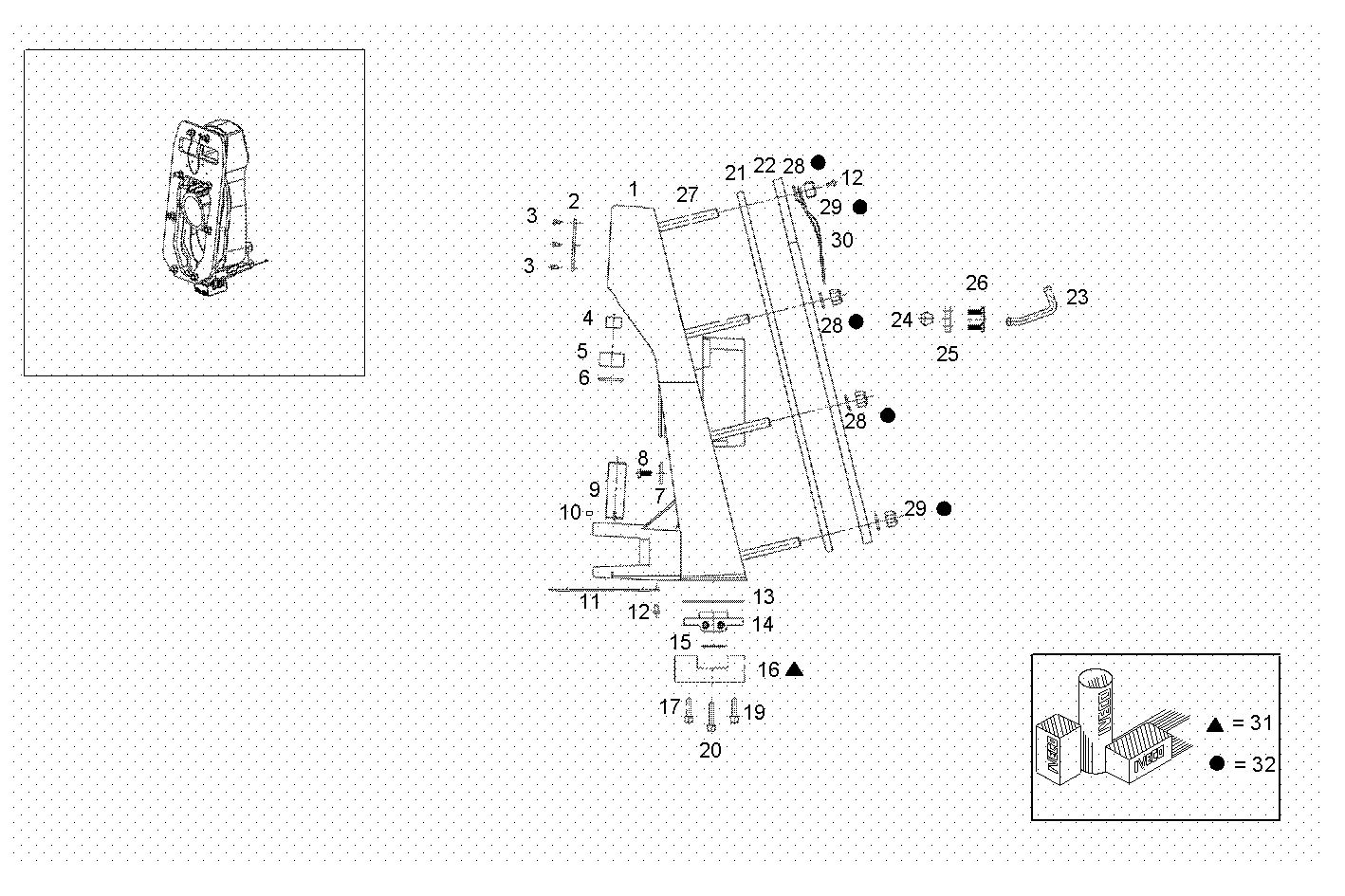

P8039545/01 STERN DRIVE - components
| Item |
Part number |
Description |
|
1 |
8095529 |
SUPPORT |
|
2 |
8095528 |
COVER |
|
3 |
8095527 |
SCREW |
|
4 |
8095526 |
DRIVE BEARING |
|
5 |
8095525 |
DRIVE BEARING |
|
6 |
8095524 |
WASHER |
|
7 |
8095523 |
WASHER |
|
8 |
8095522 |
SCREW |
|
9 |
8095521 |
PIN |
|
10 |
8095520 |
PIN |
|
11 |
8095519 |
WIRE/CABLE |
|
12 |
8095518 |
SCREW |
|
13 |
8095517 |
FLAT ENGINE GASKET |
|
14 |
8095516 |
SPACING BAR |
|
15 |
8095515 |
FLAT ENGINE GASKET |
|
16 |
8095514 |
SACRIFICAL ANODE |
|
17 |
8095513 |
STUD |
|
18 |
8095512 |
STUD |
|
19 |
8095511 |
WASHER |
|
20 |
8095510 |
NUT |
|
21 |
8095509 |
FLAT ENGINE GASKET |
|
22 |
8095508 |
COVER |
|
23 |
8090507 |
CONNECTION PIPE |
|
24 |
8095506 |
BUSH |
|
25 |
8095505 |
COVER |
|
26 |
8095504 |
SCREW |
|
27 |
8095503 |
STUD |
|
28 |
8095502 |
WASHER |
|
29 |
8095501 |
NUT |
|
30 |
8095500 |
WIRE/CABLE |
|
31 |
8095670 |
KIT Kit anodes |
|
32 |
8095672 |
KIT Kit miscellaneous |
