N60ENTM40.10A001

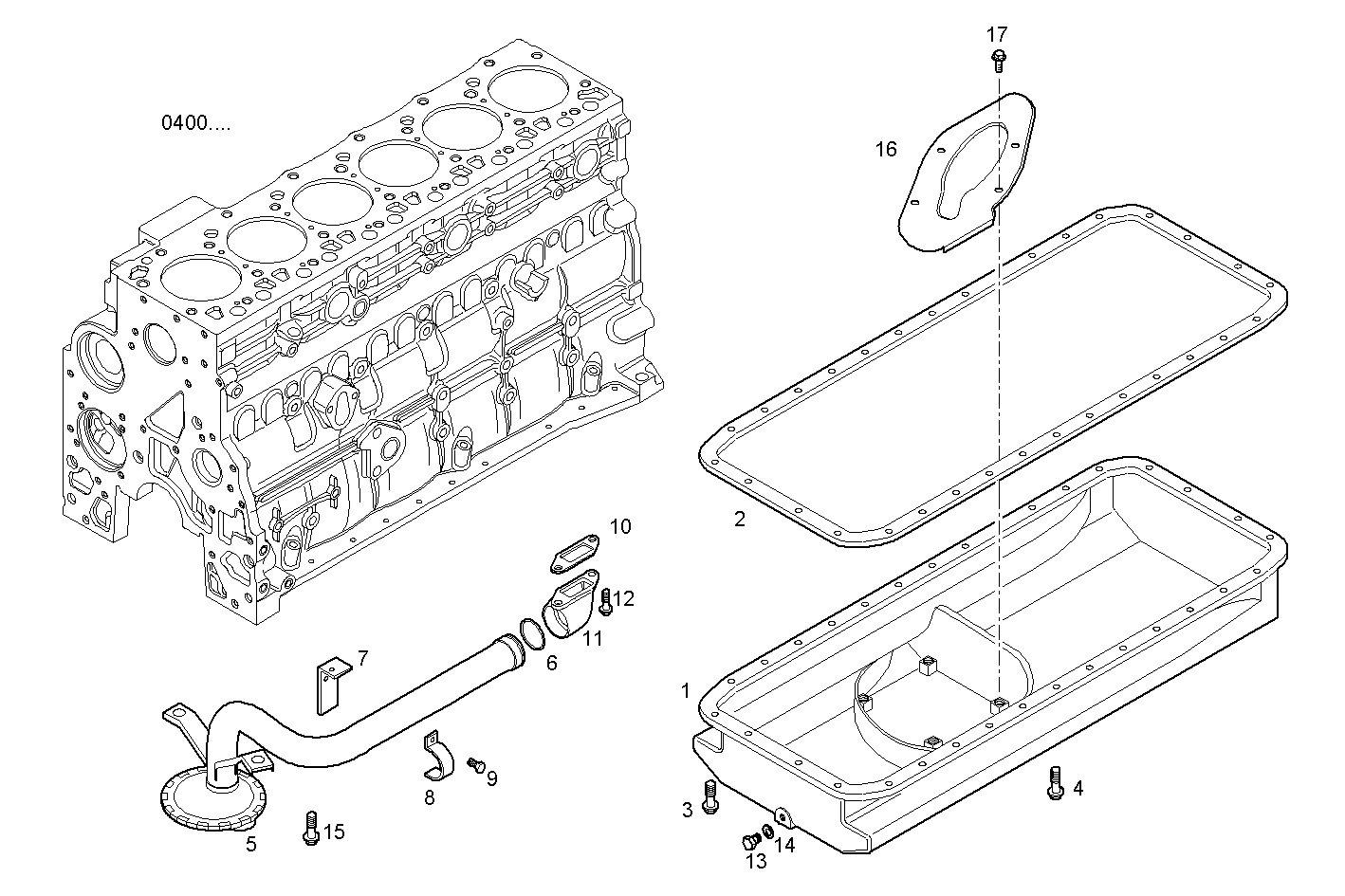

0420.246 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 8048025 OIL SUMP
2 504027340 OIL SUMP GASKET
3 16586921 HEXAGON BOLT M8X50MM
4 16673835 HEXAGON BOLT M8X30 MM
5 8036317 SUCTION STRAINER
6 17289281 O-RING Ø34,5 MM SP=3,53 MM
7 8032671 FASTENING BRACKET
8 504018526 CLIP
9 18137825 HEXAGON BOLT M6X16
10 4898301 FLAT ENGINE GASKET
11 500389915 PIPE SOCKET
12 16673735 HEXAGON BOLT M8X25 MM
13 16992340 THREADED PLUG M14X1,5
14 4858608 SEAL GASKET dia.14x19,5x1,5
15 4895291 HEXAGON BOLT M10X1,5X20 MM
16 8046764 PLATE
17 16586225 HEXAGON BOLT M8X1,25X16 MM
