N60ENTU20.00

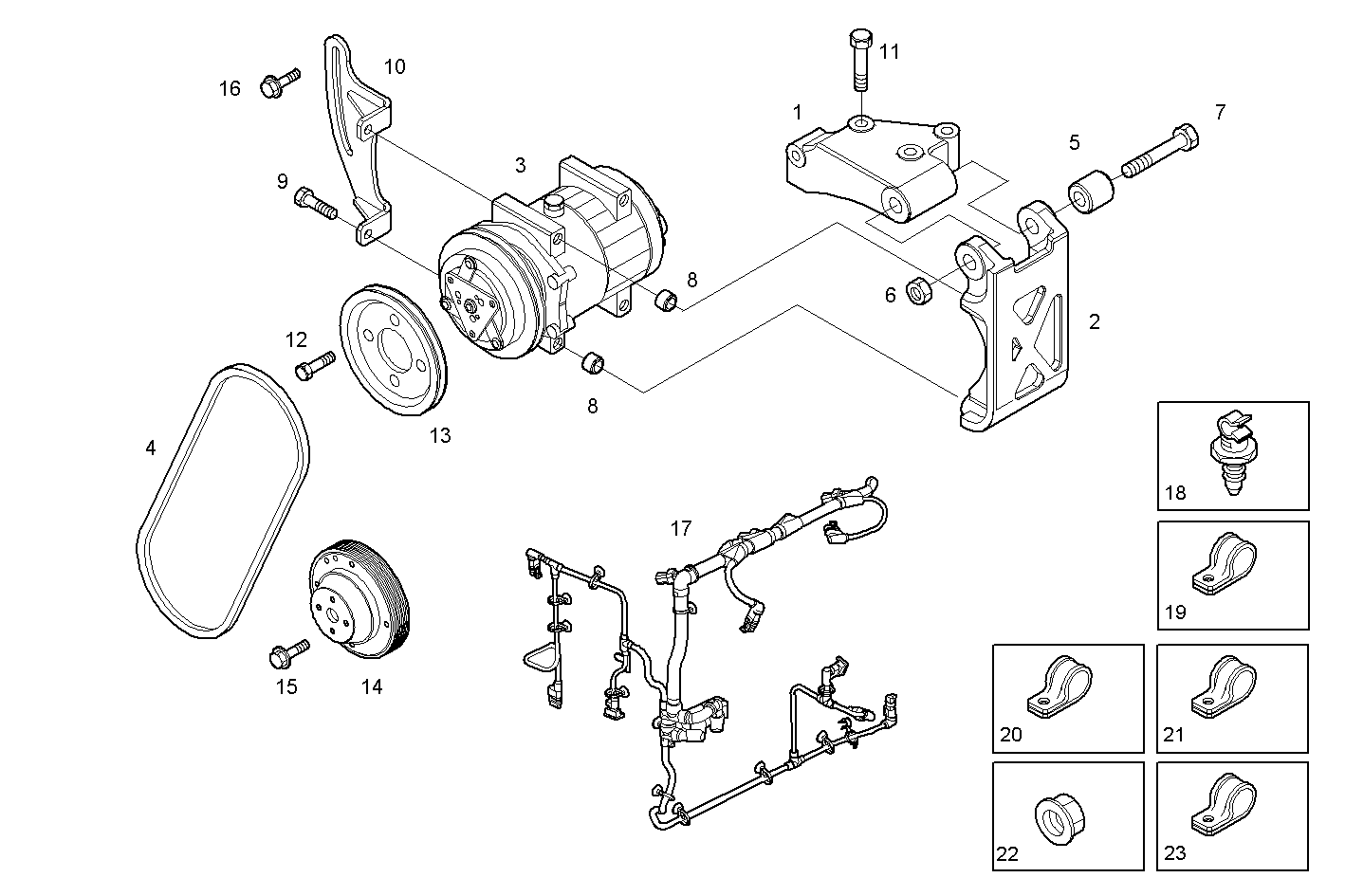

A81010503 COMPRESSOR AIR CONDITIONING - 12V X PUL. RAPP. 1.12
| Item | Part number | Description |
|---|---|---|
| 1 | 500387902 | SUPPORT |
| 2 | 500387643 | SUPPORT |
| 3 | 504020809 | AIR COND.COMPRESS. |
| 4 | 4749445 | V-BELT |
| 5 | 98433179 | SPACING BAR |
| 6 | 17044921 | HEXAGON NUT M12 |
| 7 | 16599724 | HEXAGON BOLT M12X130 MM |
| 8 | 4895227 | DOWEL PIN |
| 9 | 504056183 | HEXAGON BOLT M8x1.25x105 MM |
| 10 | 500387903 | TENSIONER |
| 11 | 4899144 | HEXAGON BOLT M10X1,5X50 MM |
| 12 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 13 | 504083372 | COMPRESSOR PULLEY |
| 14 | 504083374 | PULLEY |
| 15 | 16675835 | HEXAGON BOLT M10X30 MM |
| 16 | 4899147 | HEXAGON BOLT |
| 17 | 504011726 | WIRE/CABLE ENGINE |
| 18 | 504063553 | SPRING CLAMP |
| 19 | 17316592 | PIPE CLIP |
| 20 | 17315390 | FASTENING BRACKET |
| 21 | 17315690 | FASTENING BRACKET |
| 22 | 17044625 | HEXAGON NUT M6 |
| 23 | 17315192 | FASTENING BRACKET ENGINE |
