N60MNTG26.00A001

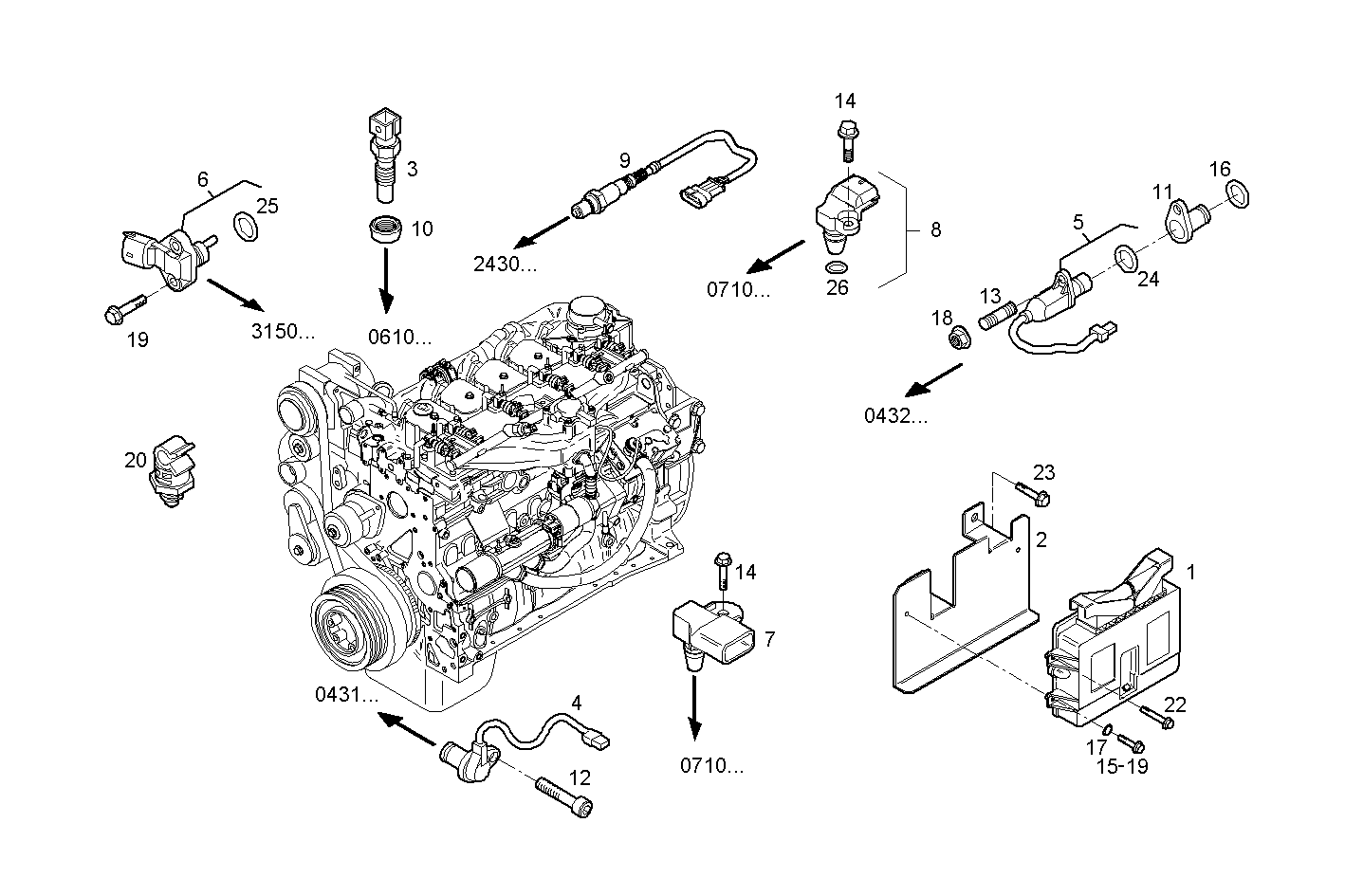

1700.057 ELECTRONIC CONTROL UNIT

Iveco/FPT ELECTRONIC CONTROL UNIT

Item Part number Description
1 504067777 ELECTR.CONTR.UNIT
2 504078230 SUPPORT
3 4897224 SENSOR TEMPERATURE
4 4890189 SENSOR SPEED
5 4890190 SENSOR SPEED
6 4890193 SENSOR OIL PRESS. & TEMPER.
7 504064370 SENSOR AIR PRESS. & TEMPER.
8 504073323 SENSOR AIR PRESS. & TEMPER. [FROM # 158928]
9 504083015 SENSOR LAMBDA
10 8033022 PIPE SOCKET
11 4892255 PIPE SOCKET
12 4899082 CYLIND-HEAD SCREW M6X1X20 MM
13 4895157 STUD
14 16588225 HEXAGON BOLT M12X40 MM
16 17278881 O-RING Ø23,5 MM SP=1,7 MM
17 17094614 WASHER Ø6X11 MM
18 17037821 HEXAGON NUT M6X1
19 4899110 HEXAGON BOLT
20 504063553 SPRING CLAMP
22 16585825 HEXAGON BOLT M6X20 MM
23 16677735 HEXAGON BOLT M12X25 MM
24 17278481 O-RING Ø17,17 MM SP=1,78 MM
25 4895477 O-RING
26 42546555 O-RING [FROM # 158928]
