N60MNTG26.00A003

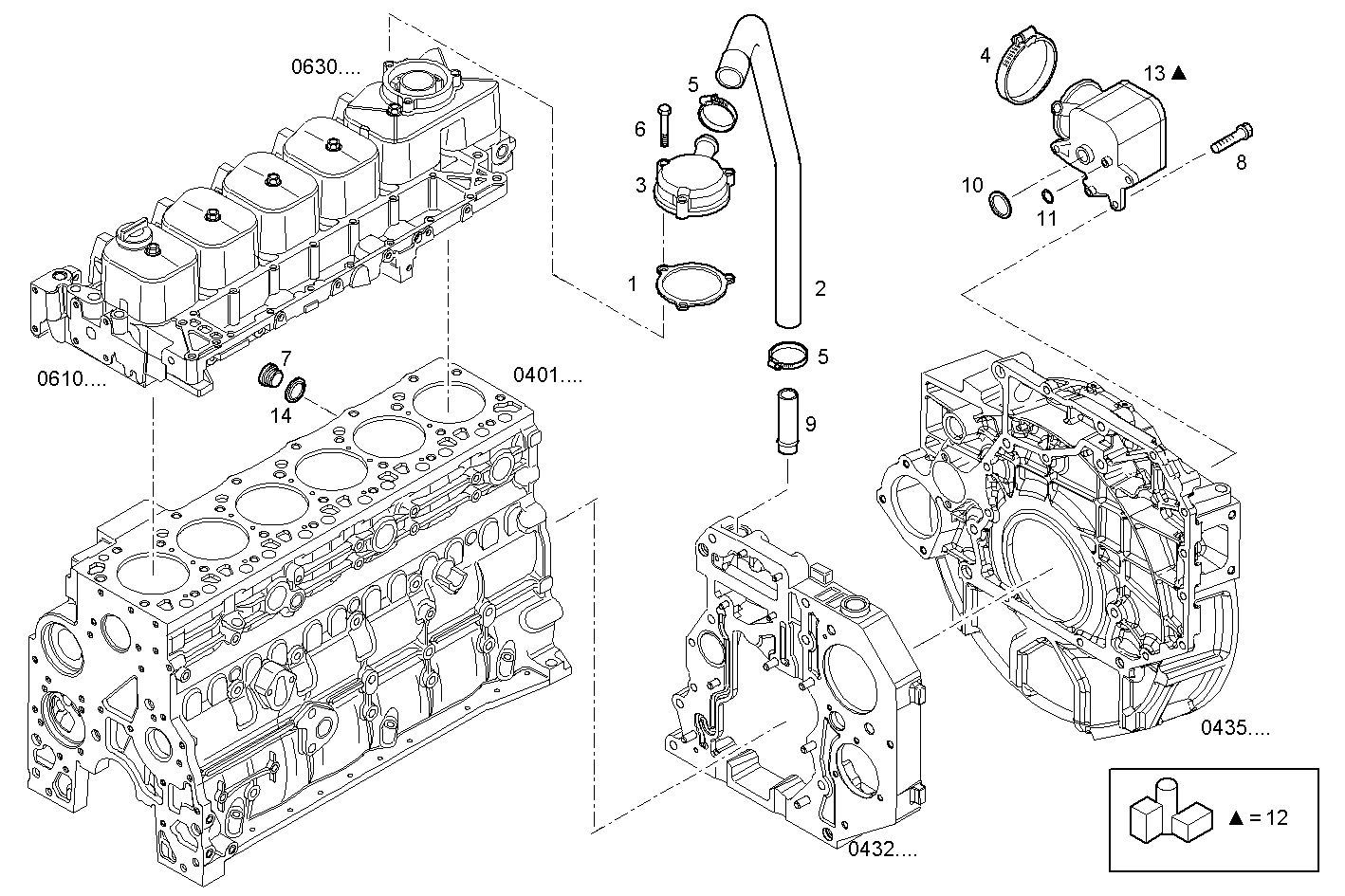

0450.238 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 504083527 | SEAL GASKET |
| 2 | 504083526 | CONNECTOR SLEEVE |
| 3 | 99445059 | COVER ASSY BUNDY |
| 4 | 17765192 | HOSE CLIP Ø70-90 MM |
| 5 | 17764694 | CLIP Ø25/40 MM |
| 6 | 16604124 | HEXAGON BOLT M6X40 MM |
| 7 | 16992211 | THREADED PLUG M12X1,5 |
| 8 | 4899092 | HEXAGON BOLT |
| 9 | 4897547 | CONNECTOR SLEEVE |
| 10 | 2830304 | SEAL GASKET Ø18,68 MM SP=3,53 MM |
| 11 | 4898372 | O-RING Ø13,11 MM SP=2,62 MM |
| 12 | 2992447 | KIT for breather |
| 13 | 4892871 | BREATHER ASSY |
| 14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
