N60MNTG26.00A003

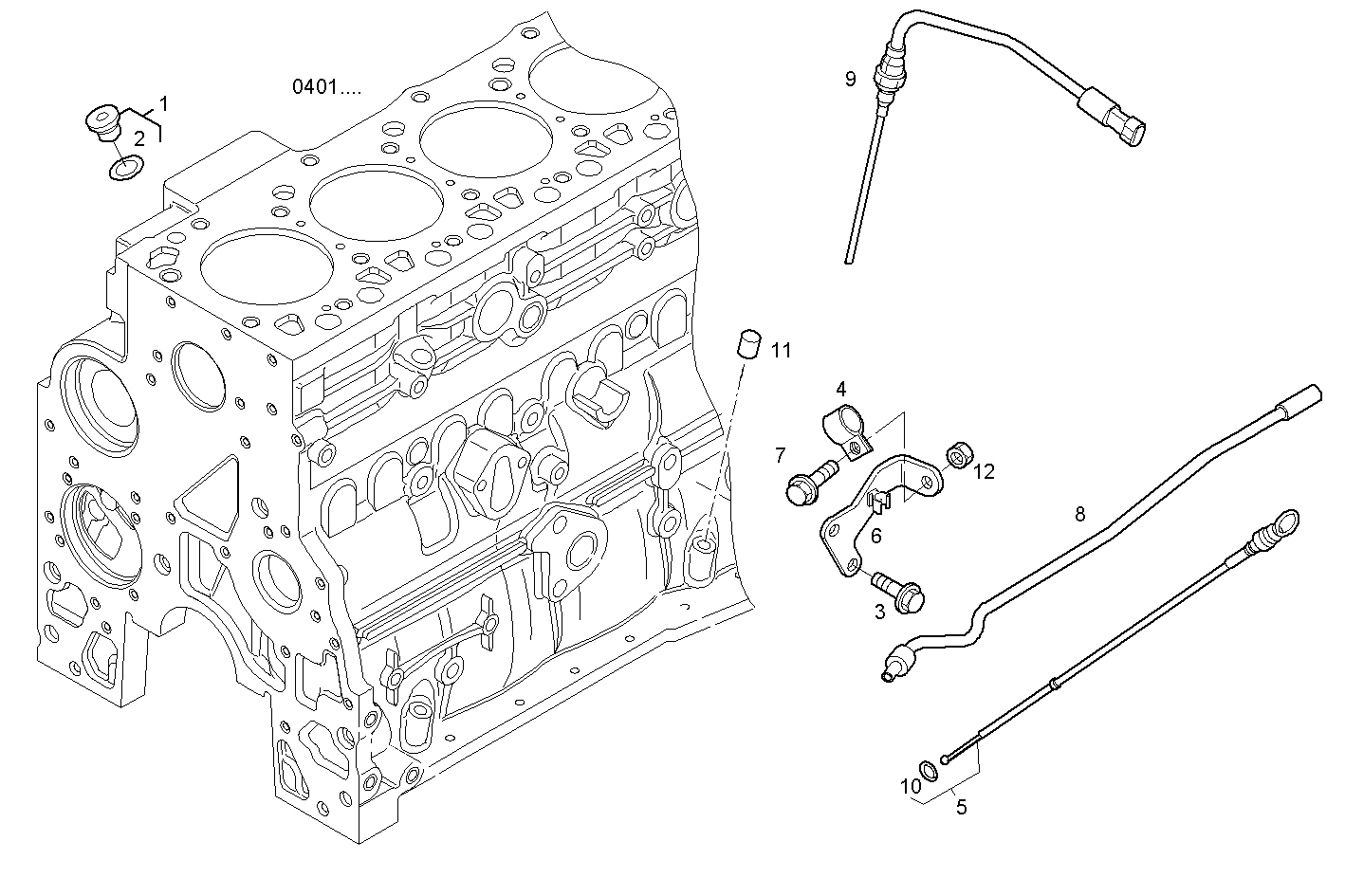

2700.061 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4897330 | PLUG ASSY M12X1,5 |
| 2 | 4895610 | O-RING |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 17315090 | FASTENING BRACKET Ø14 MM |
| 5 | 504069153 | OIL DIPSTICK ASSY |
| 6 | 504052680 | RETAINER |
| 7 | 4895164 | HEXAGON BOLT |
| 8 | 504059244 | OIL LEVEL TUBE |
| 9 | 4897788 | SENSOR |
| 10 | 17277981 | O-RING 1,78x9,25 |
| 11 | 4895406 | PLUG |
| 12 | 4899057 | HEXAGON NUT M8X1,25X25 |
