N67ENTM45.10

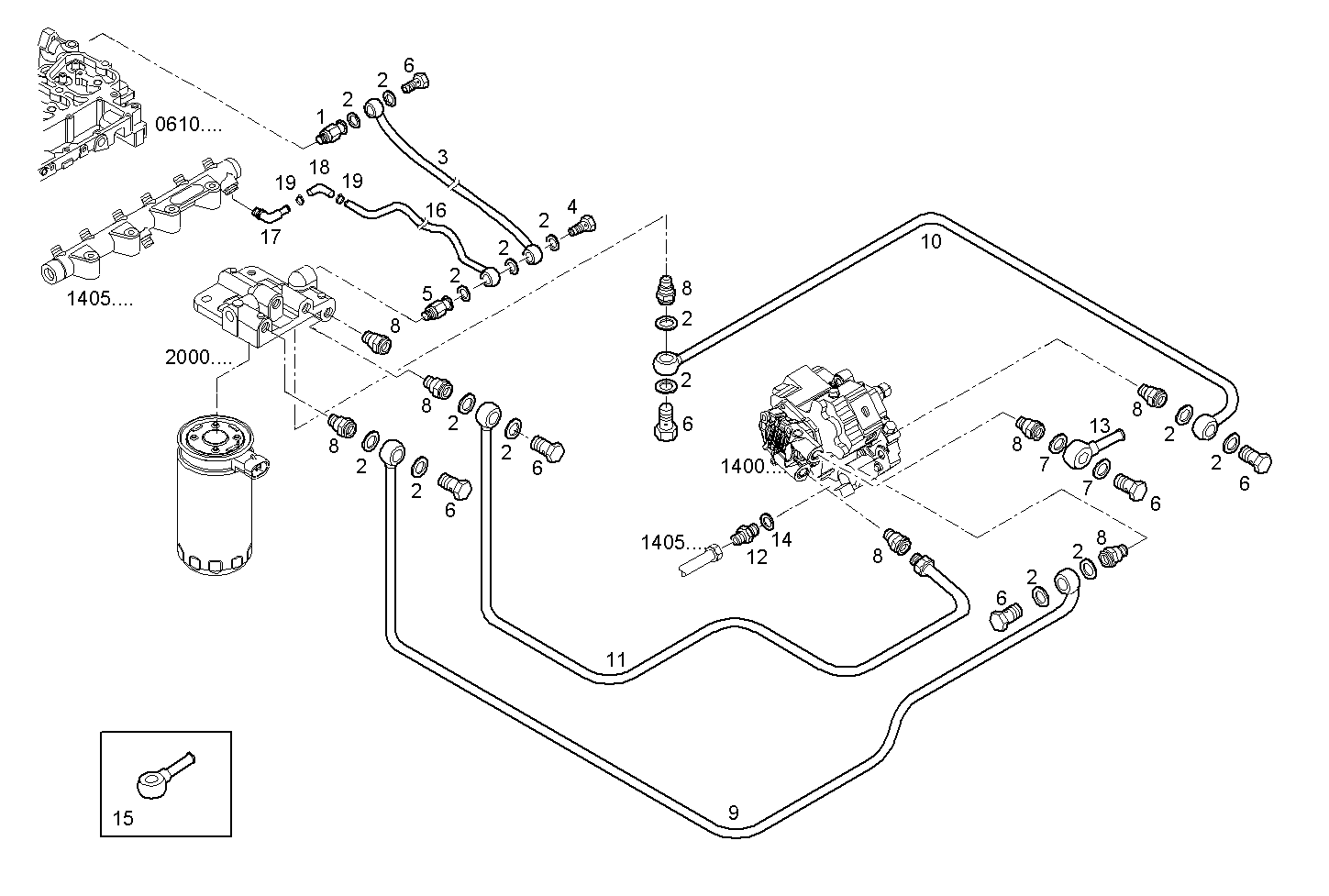

2030.321 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8035490 | CONTROL VALVE |
| 2 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 3 | 8038860 | FUEL LINE |
| 4 | 8016191 | BANJO BOLT M12X1,5 |
| 5 | 8035491 | PIPE SOCKET |
| 6 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 7 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 8 | 99476542 | THREADED UNION M12X1,5 |
| 9 | 8035633 | FUEL LINE |
| 10 | 8035631 | FUEL LINE |
| 11 | 8035632 | FUEL LINE |
| 12 | 16500114 | THREADED UNION M12X1,5 - M14X1,5 |
| 13 | 98405514 | PIPE SOCKET |
| 14 | 17278181 | O-RING [FROM # 50368] |
| 15 | 98404884 | SWIVEL COUPLING |
| 16 | 8047419 | FUEL LINE |
| 17 | 8034419 | ELBOW COUPLING |
| 18 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
| 19 | 18088293 | CLIP Ø12/20 MM |
