N67ENTM56.10

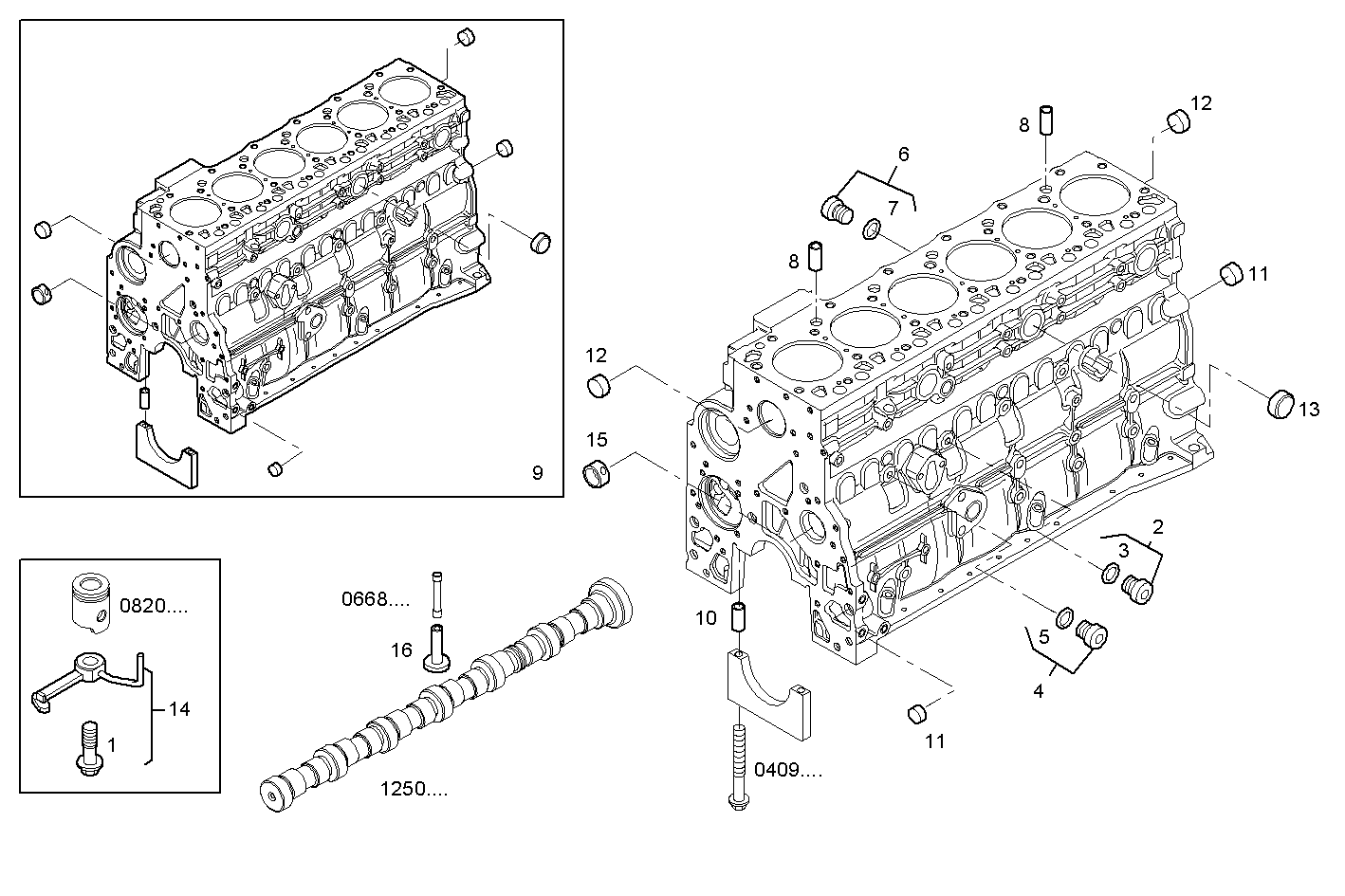

0401.052 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 4894218 | SCREW CONNECTOR M8X1.25 |
| 2 | 4895605 | PLUG ASSY M14X1,5 |
| 3 | 4899115 | O-RING |
| 4 | 4899009 | THREADED PLUG ASSY M10X1 |
| 5 | 4899072 | O-RING |
| 6 | 4895392 | THREADED PLUG ASSY M18X1,5 |
| 7 | 4895393 | O-RING |
| 8 | 4895049 | DOWEL PIN |
| 9 | 8052083 | CRANKCASE ASSY |
| 10 | 4899026 | DOWEL PIN |
| 11 | 4895039 | PLUG Ø17 MM |
| 12 | 4895038 | PLUG Ø58 MM |
| 13 | 4895228 | PLUG Ø35 MM |
| 14 | 504054307 | OIL NOZZLE ASSY |
| 15 | 4895040 | CAMSHAFT BEARING |
| 16 | 4899803 | TAPPET |
