N67ENTM56.10

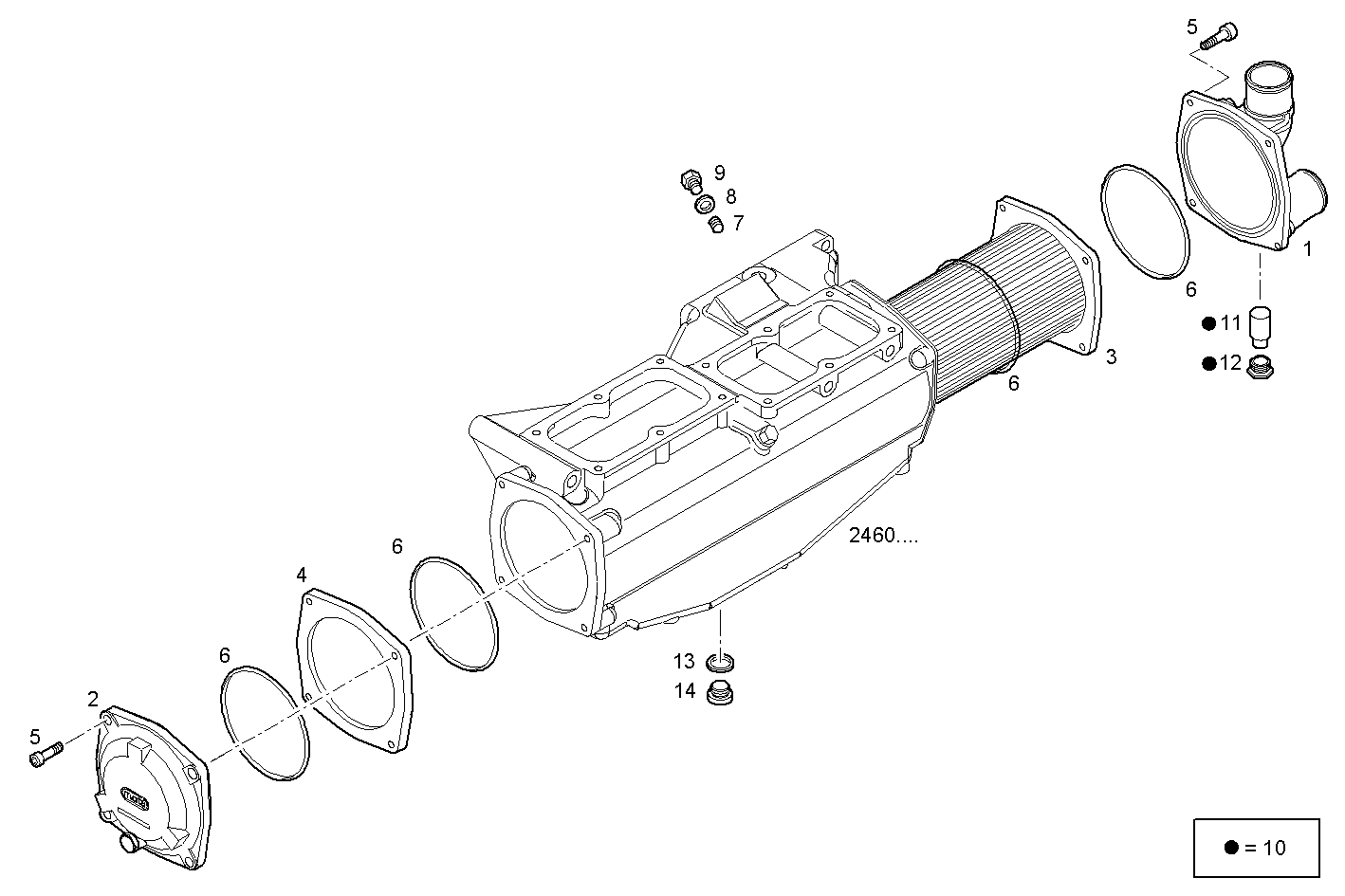

2461.009 AIR - WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8052195 | HEAT EXCHANG.COVER FRONT |
| 2 | 8029427 | HEAT EXCHANG.COVER REAR |
| 3 | 8037998 | TUBE STACK |
| 4 | 8029428 | SPACING BAR |
| 5 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 6 | 8030481 | O-RING Ø142,47X3,53 MM |
| 7 | 8031509 | SCREW |
| 8 | 10284460 | SEAL GASKET Ø10X16 MM |
| 9 | 8030490 | PLUG M10X1,5 |
| 10 | 8033236 | PLUG ASSY |
| 11 | 8093597 | SACRIFICAL ANODE |
| 12 | 8093596 | PLUG |
| 13 | 8093598 | GASKET |
| 14 | 16992111 | THREADED PLUG M10X1 |
