N67ENTM56.10

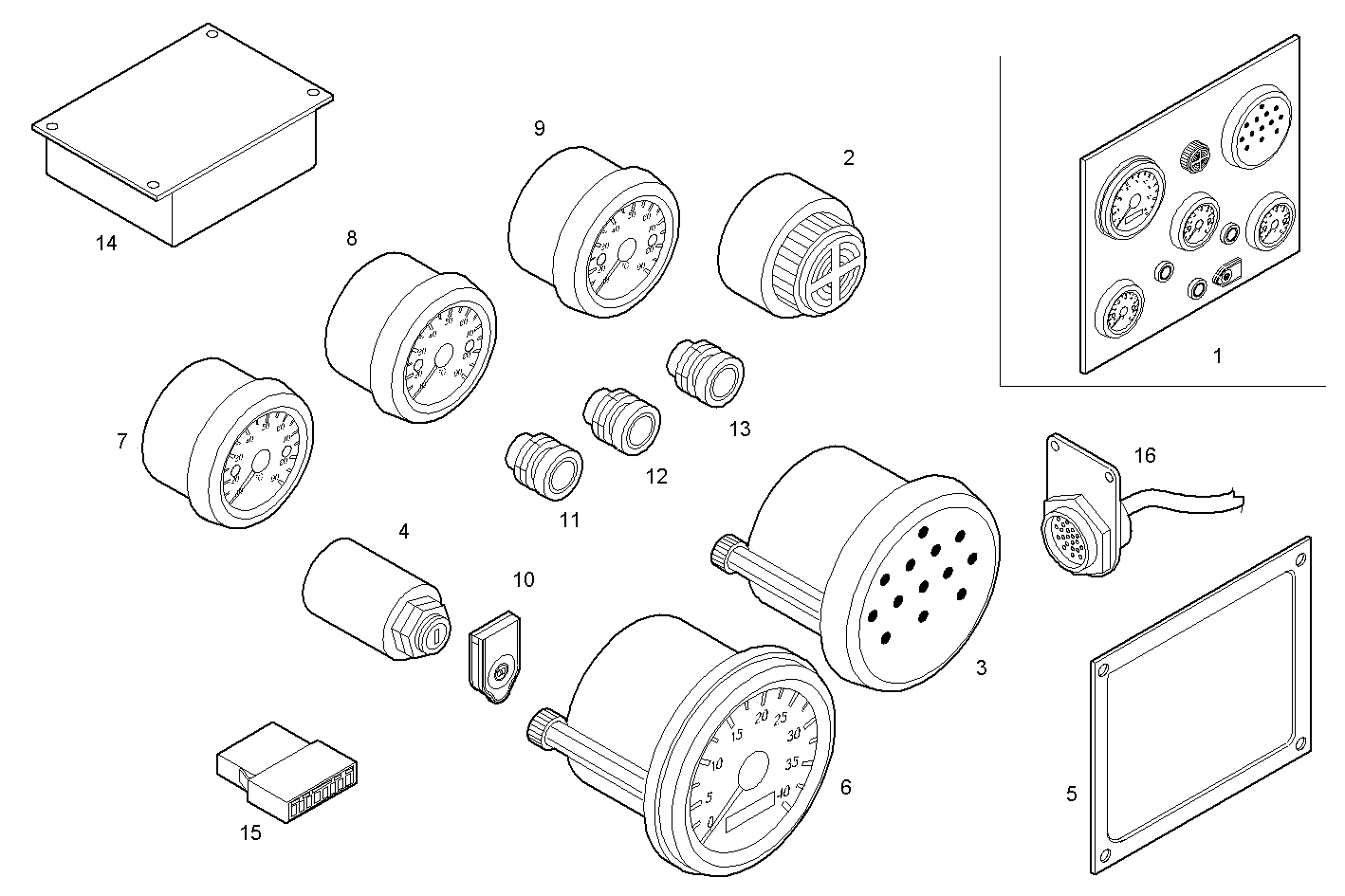

A38770526 PANEL WITH ELECTRICAL INSTRUMENTS - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8037766 | CONTROL BOARD ASSY ASSY |
| 2 | 8035166 | ACOUSTIC HORN |
| 3 | 8034892 | WARNING LIGHT |
| 4 | 8035169 | SWITCH |
| 5 | 8044808 | SEAL GASKET |
| 6 | 8036144 | REVOLUTION COUNTER |
| 7 | 8036150 | THERMOMETER |
| 8 | 8036149 | PRESSURE GAUGE |
| 9 | 8036148 | VOLTMETER |
| 10 | 8035172 | COVER |
| 11 | 8036409 | PUSH BUTTON BLACK COL. |
| 12 | 8035712 | PUSH BUTTON |
| 13 | 8036411 | PUSH BUTTON RED |
| 14 | 8052435 | SWITCH PANEL analog.converter- S.GIORGIO 12V |
| 15 | 8042637 | WIRE CONNECTOR |
| 16 | 8041699 | EXTENSION interface analog.panel |
