N67ENTX24.00A001

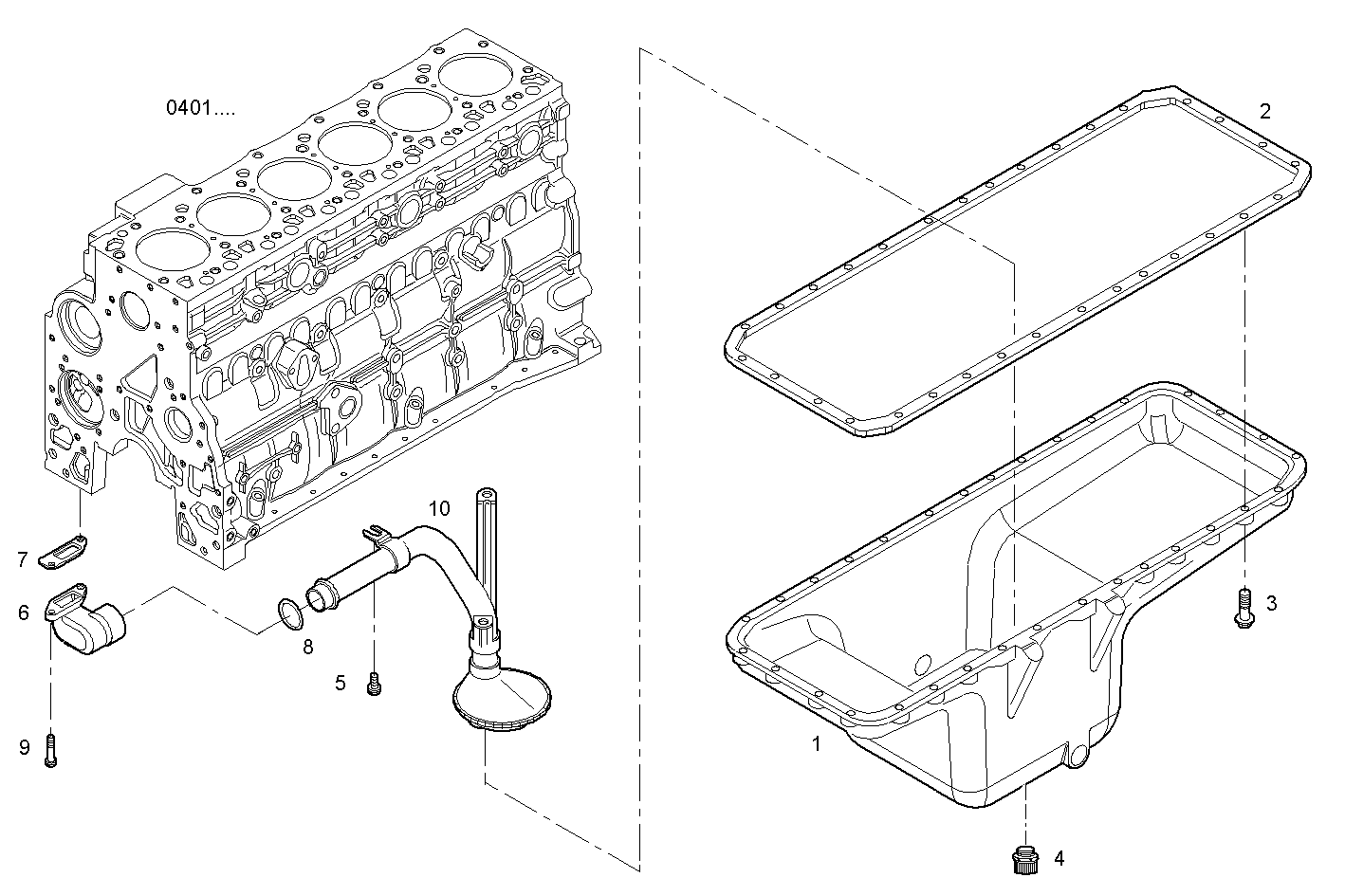

0420.202 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504079344 | OIL SUMP |
| 2 | 504027340 | OIL SUMP GASKET |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 504068028 | CONTROL VALVE |
| 5 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
| 6 | 504064052 | INTAKE ELBOW |
| 7 | 4898301 | FLAT ENGINE GASKET |
| 8 | 17282481 | O-RING Ø26,64 MM SP=2,62 MM |
| 9 | 16673735 | HEXAGON BOLT M8X25 MM |
| 10 | 504084078 | SUCTION STRAINER |
