N67ENTY20.00

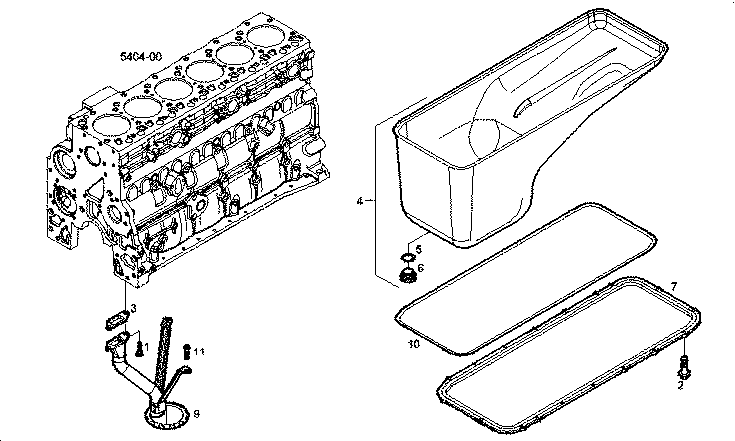

107221 ASSEMBLY-SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 2 | 4899091 | HEXAGON BOLT |
| 3 | 4898301 | FLAT ENGINE GASKET |
| 4 | 500388254 | OIL SUMP ASSY |
| 5 | 17282280 | O-RING Ø2,62X23,47 MM |
| 6 | 4894139 | THREADED PLUG M22X1,5 |
| 7 | 4897858 | SPACING BAR |
| 9 | 504388529 | SUCTION STRAINER |
| 10 | 4897861 | OIL SUMP GASKET |
| 11 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
