N67MNAM12.30

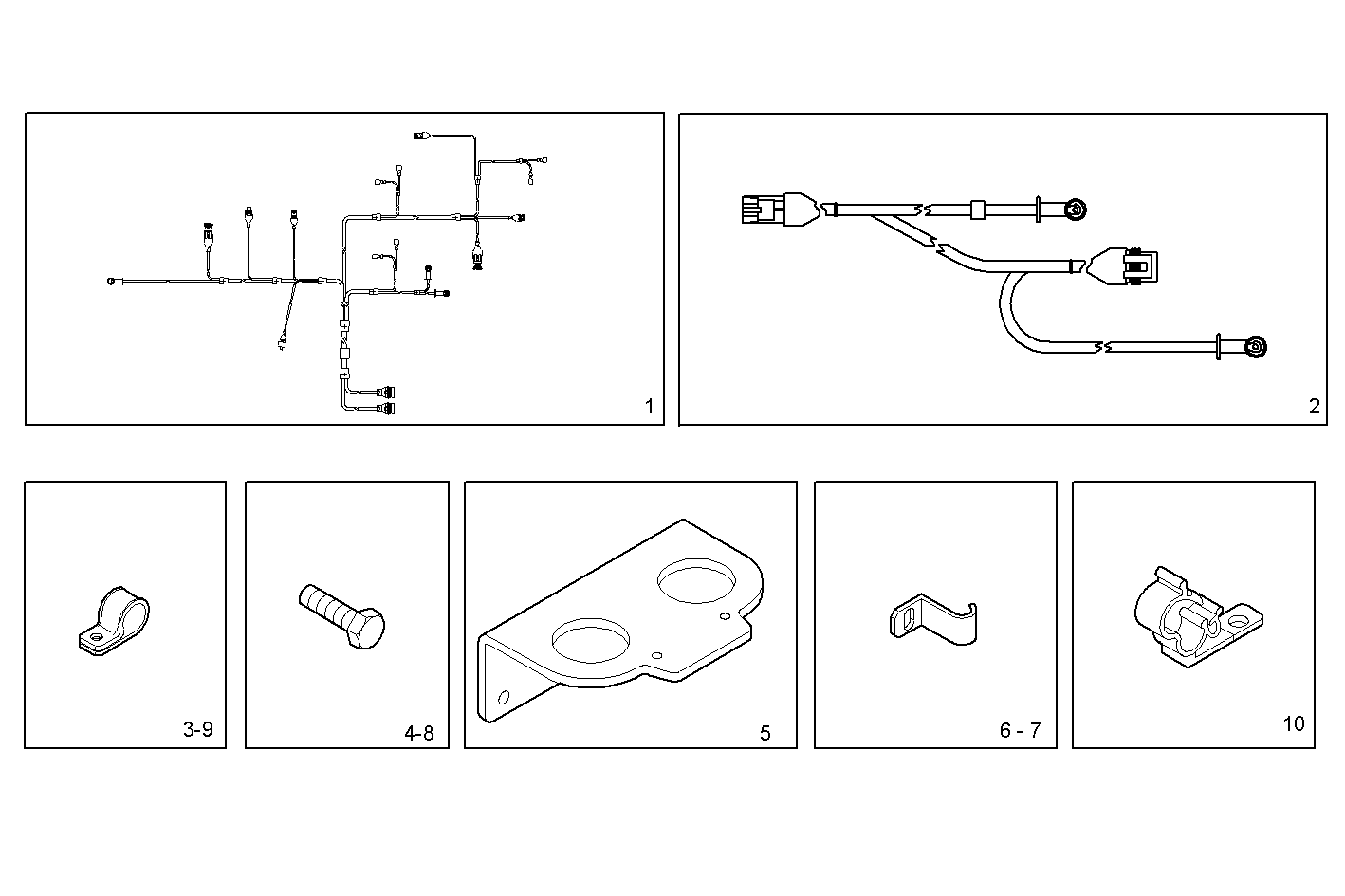

1730.073 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 8036996 | ENGINE HARNESS ENGINE |
| 2 | 8039724 | WIRE/CABLE for electrovalve & ksb |
| 3 | 10450590 | PIPE CLIP �18 MM |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 8039482 | PLATE |
| 6 | 17316699 | PIPE CLIP �14 MM |
| 7 | 17316690 | FASTENING BRACKET �20,5 MM |
| 8 | 16677735 | HEXAGON BOLT M12X25 MM |
| 9 | 10450090 | PIPE CLIP �8 MM |
| 10 | 99453771 | RETAINER |
