N67MNAM15.02

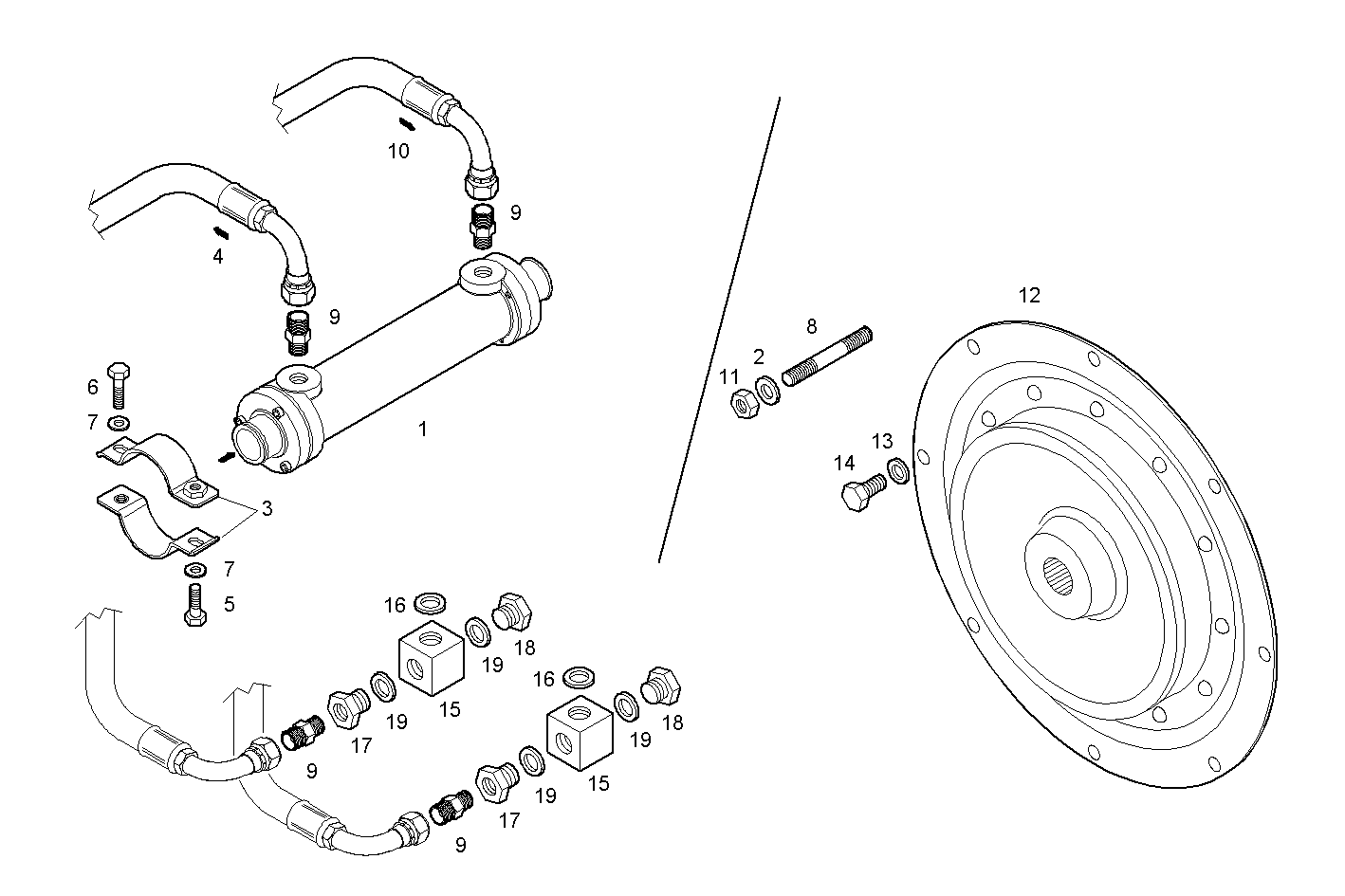

A51180502/01 MARINE GEAR - ZF 45A ratio 1.51:1

Iveco/FPT MARINE GEAR

Item Part number Description
1 8016304 OIL/WATER HEAT EXCHANGER ASSY
2 17090174 SPRING WASHER Ø10X20 MM
3 8039731 CLIP
4 8108735 OIL HOSE
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 16605734 HEXAGON BOLT M8X30 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17368024 STUD M10X25X30
9 4935465 PIPE SOCKET
10 8108736 OIL HOSE
11 17038131 HEXAGON NUT M10
12 8005929 FLEXPLATE
13 17798374 SPRING WASHER Ø10,2X18,1 MM
14 15970524 HEXAGON BOLT M10X1,25X20
15 8107173 PIPE SOCKET
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 8105826 PIPE SOCKET
18 10183317 LOCK PLUG M16X1,5
19 98474309 WASHER Ø16X24 MM SP=1,9 MM
