N67MNAM15.30

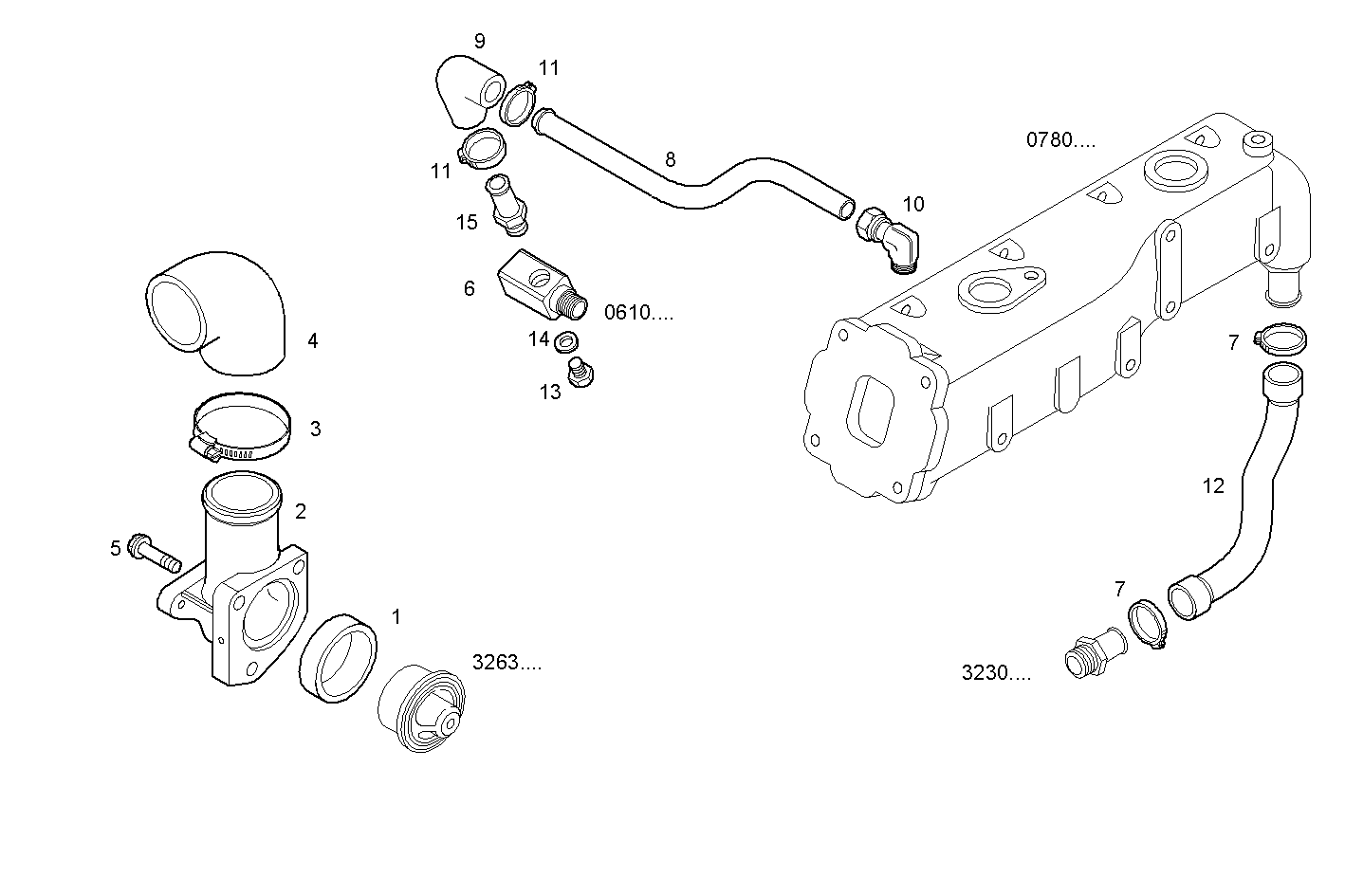

3230.052 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504078856 | RUBBER GASKET |
| 2 | 504079269 | THERMOSTAT BODY |
| 3 | 17764892 | PIPE CLIP Ø40-60 MM |
| 4 | 98433319 | RUBBER SLEEVE |
| 5 | 4899091 | HEXAGON BOLT |
| 6 | 8039246 | PIPE SOCKET |
| 7 | 18088493 | CLIP |
| 8 | 8039245 | WATER PIPE |
| 9 | 8039365 | RUBBER SLEEVE |
| 10 | 8110267 | PIPE SOCKET |
| 11 | 18088593 | CLIP 25x40 |
| 12 | 8040140 | RUBBER SLEEVE |
| 13 | 16992311 | LOCK PLUG M14X1,5 |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 15 | 4633506 | THREADED UNION M22X1,5 |
