N67MNSM22.10

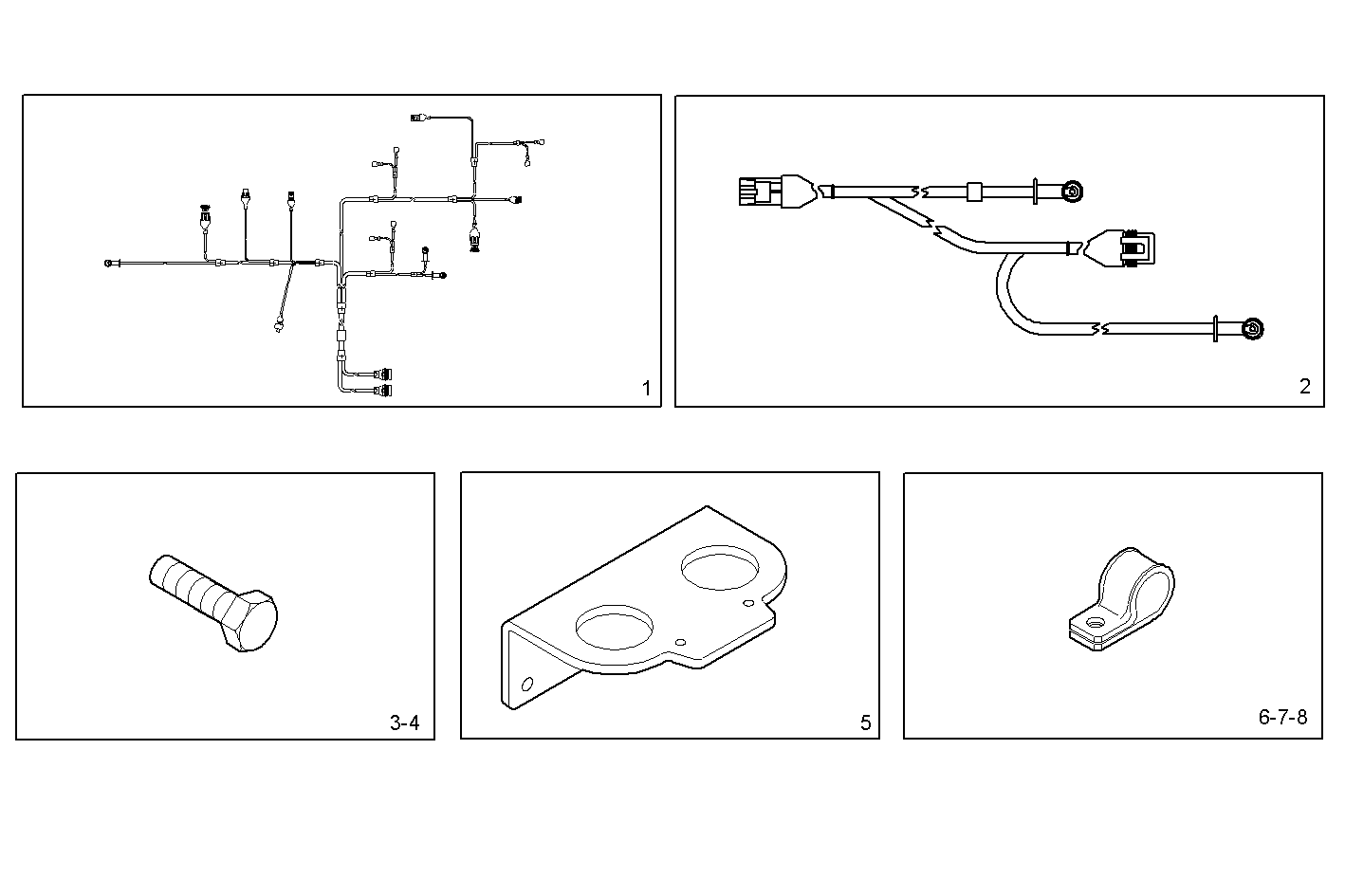

1730.074 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 8036996 | ENGINE HARNESS ENGINE |
| 2 | 8037858 | ENGINE HARNESS for electrovalve & ksb |
| 3 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 4 | 16677735 | HEXAGON BOLT M12X25 MM |
| 5 | 8039482 | PLATE |
| 6 | 10450090 | PIPE CLIP Ø8 MM |
| 7 | 17316699 | PIPE CLIP Ø14 MM |
| 8 | 17316690 | FASTENING BRACKET Ø20,5 MM |
