N67MNTD20.00A007

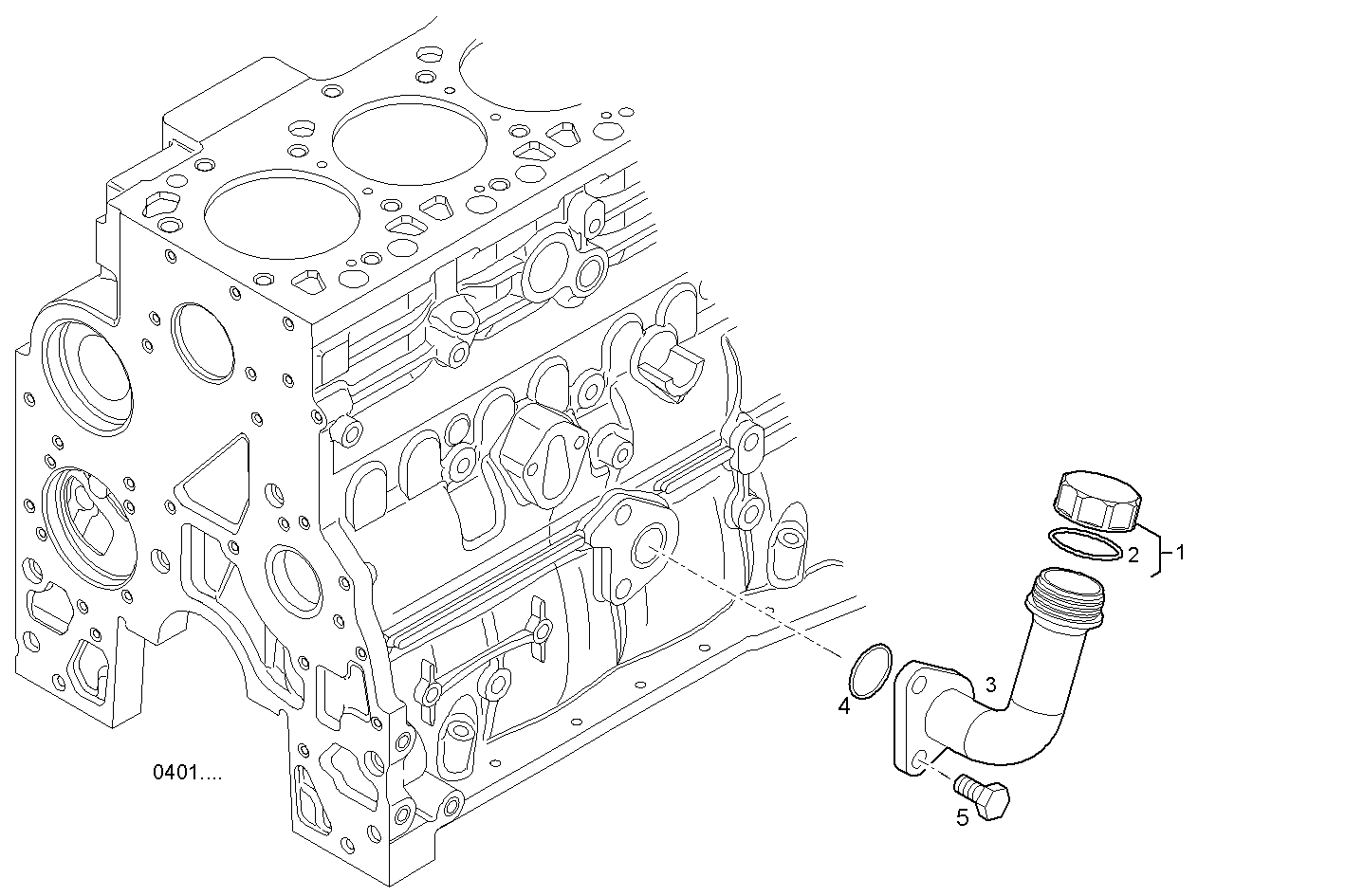

2712.011 OIL DIPSTICK PIPE [FROM 23/03/06] [FROM 23/03/06]
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 17295480 | O-RING 5,33x37,46 |
| 3 | 504087621 | OIL FILLER PIPE |
| 4 | 17283181 | O-RING Ø37,77 MM SP=2,62 MM |
| 5 | 16677735 | HEXAGON BOLT M12X25 MM |
