N67MNTD20.00A007

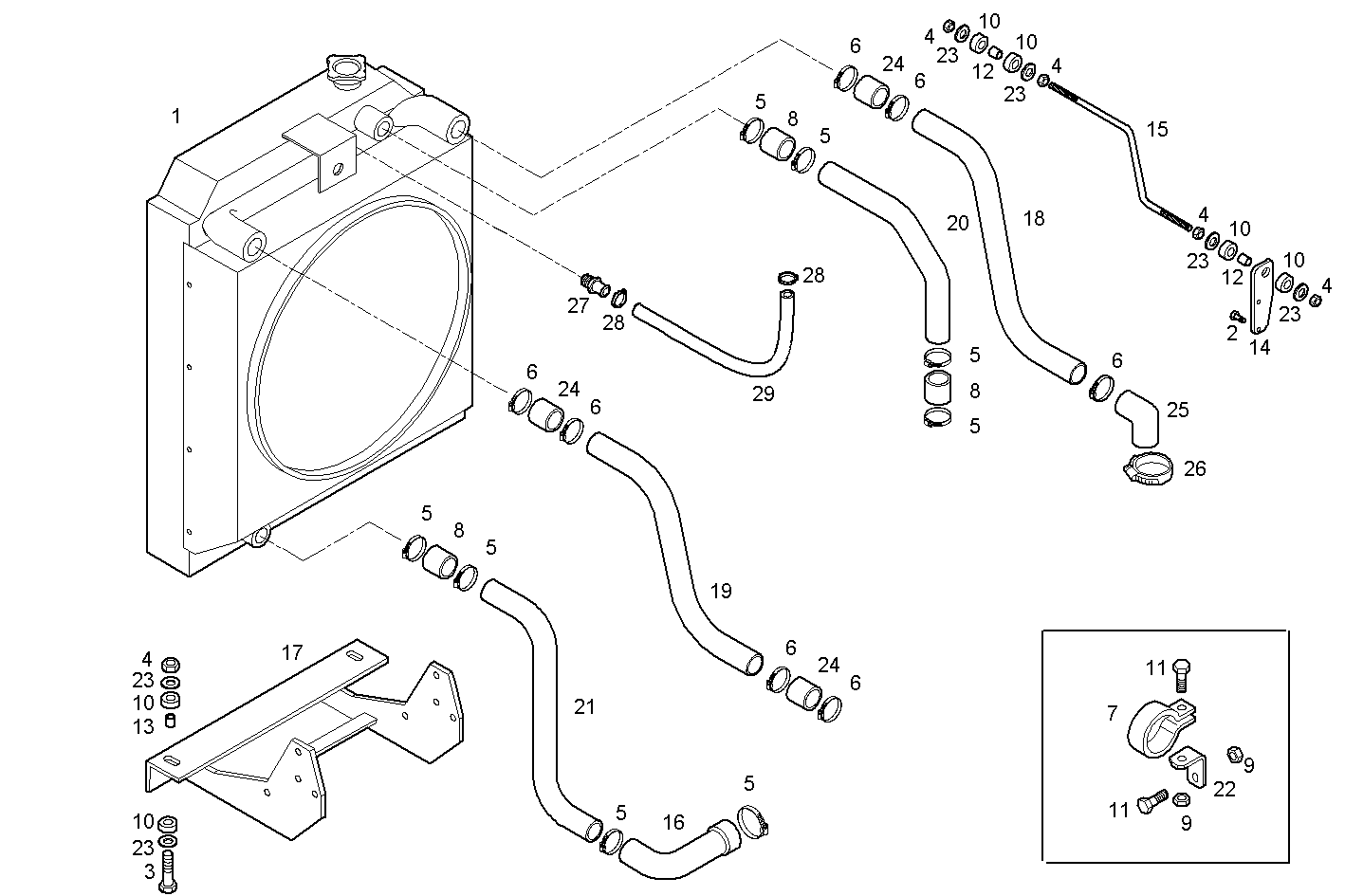

3300.031 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8042936 | WATER RADIATOR |
| 2 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 3 | 16588824 | HEXAGON BOLT M12X1,75X70 MM |
| 4 | 16750425 | HEXAGON NUT M12 |
| 5 | 17764991 | CLIP Ø50/70 MM |
| 6 | 17765291 | CLIP Ø80/100 MM |
| 7 | 18116704 | FASTENING BRACKET |
| 8 | 98433328 | WATER HOSE |
| 9 | 17044735 | NUT M8 |
| 10 | 741569 | RUBBER LUG |
| 11 | 16673735 | HEXAGON BOLT M8X25 MM |
| 12 | 8108634 | SPACING BAR |
| 13 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 14 | 8037825 | RETAINER |
| 15 | 8038147 | TIE ROD |
| 16 | 8039375 | RUBBER SLEEVE |
| 17 | 8038085 | SUPPORT |
| 18 | 8043759 | AIR PIPE/DUCT |
| 19 | 8043758 | AIR PIPE/DUCT |
| 20 | 8043753 | WATER PIPE |
| 21 | 8038111 | WATER PIPE |
| 22 | 8103023 | RETAINER |
| 23 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 24 | 98443275 | TURBOCHARGER HOSE |
| 25 | 8045559 | RUBBER SLEEVE |
| 26 | 17765091 | CLIP Ø60/80 MM |
| 27 | 4895118 | THREADED UNION |
| 28 | 18087993 | CLIP Ø8/16 MM |
| 29 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
