N67MNTE21.00L002

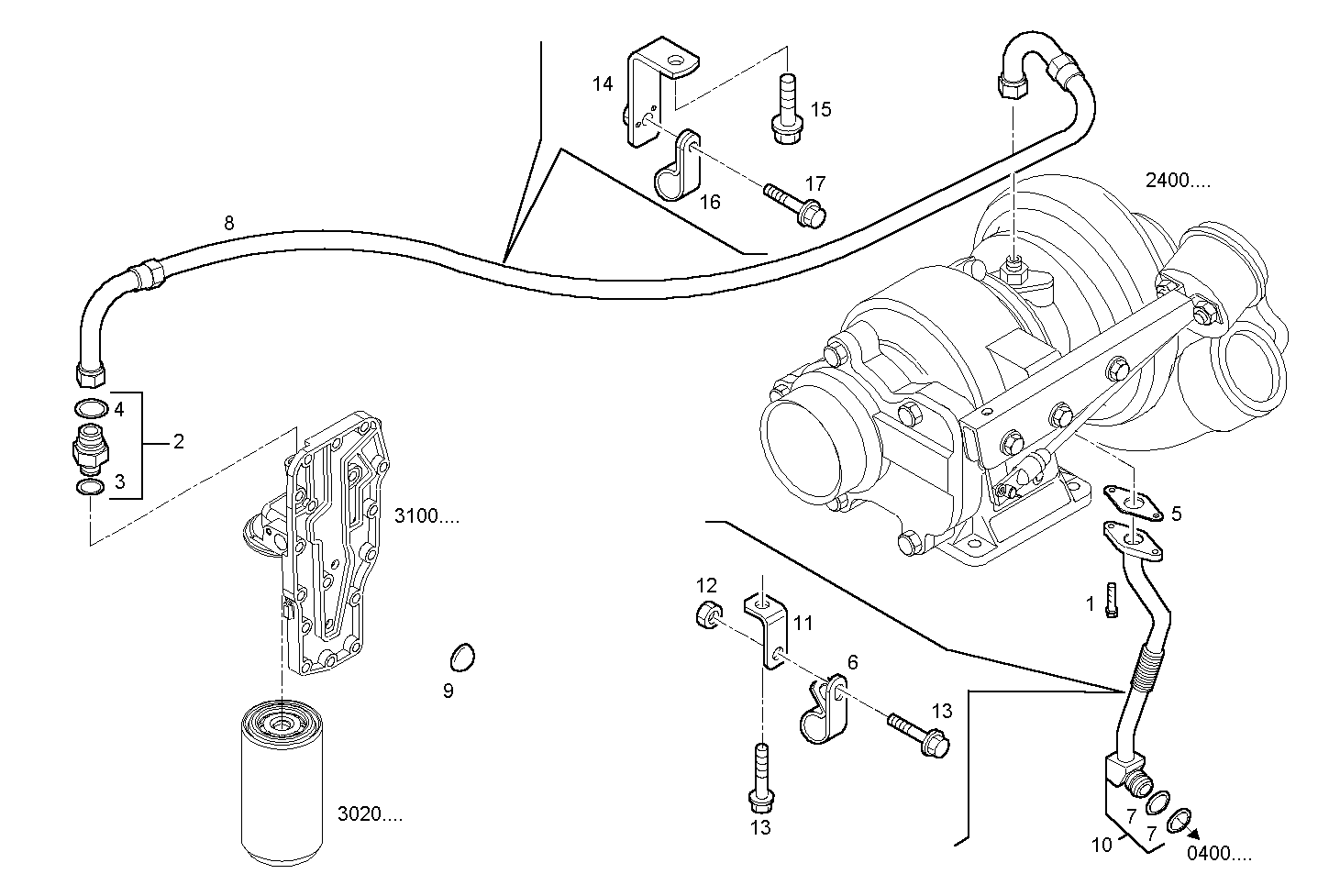

3010.227 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4899031 | HEXAGON BOLT M8X25 MM |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4891288 | FLAT ENGINE GASKET |
| 6 | 4896893 | CLIP |
| 7 | 17281881 | O-RING DIA 17,12 SP 2,62 |
| 8 | 504075228 | OIL LINE INLET |
| 9 | 4895089 | PLUG |
| 10 | 8036668 | OIL LINE OUTLET |
| 11 | 98459285 | FASTENING BRACKET |
| 12 | 17044725 | HEXAGON NUT M8 |
| 13 | 18138325 | HEXAGON BOLT M8X16 MM |
| 14 | 99477631 | FASTENING BRACKET |
| 15 | 4895291 | HEXAGON BOLT M10X1,5X20 MM |
| 16 | 17316399 | FASTENING BRACKET |
| 17 | 4899068 | HEXAGON BOLT M8X17 MM |
