N67MNTF40.01

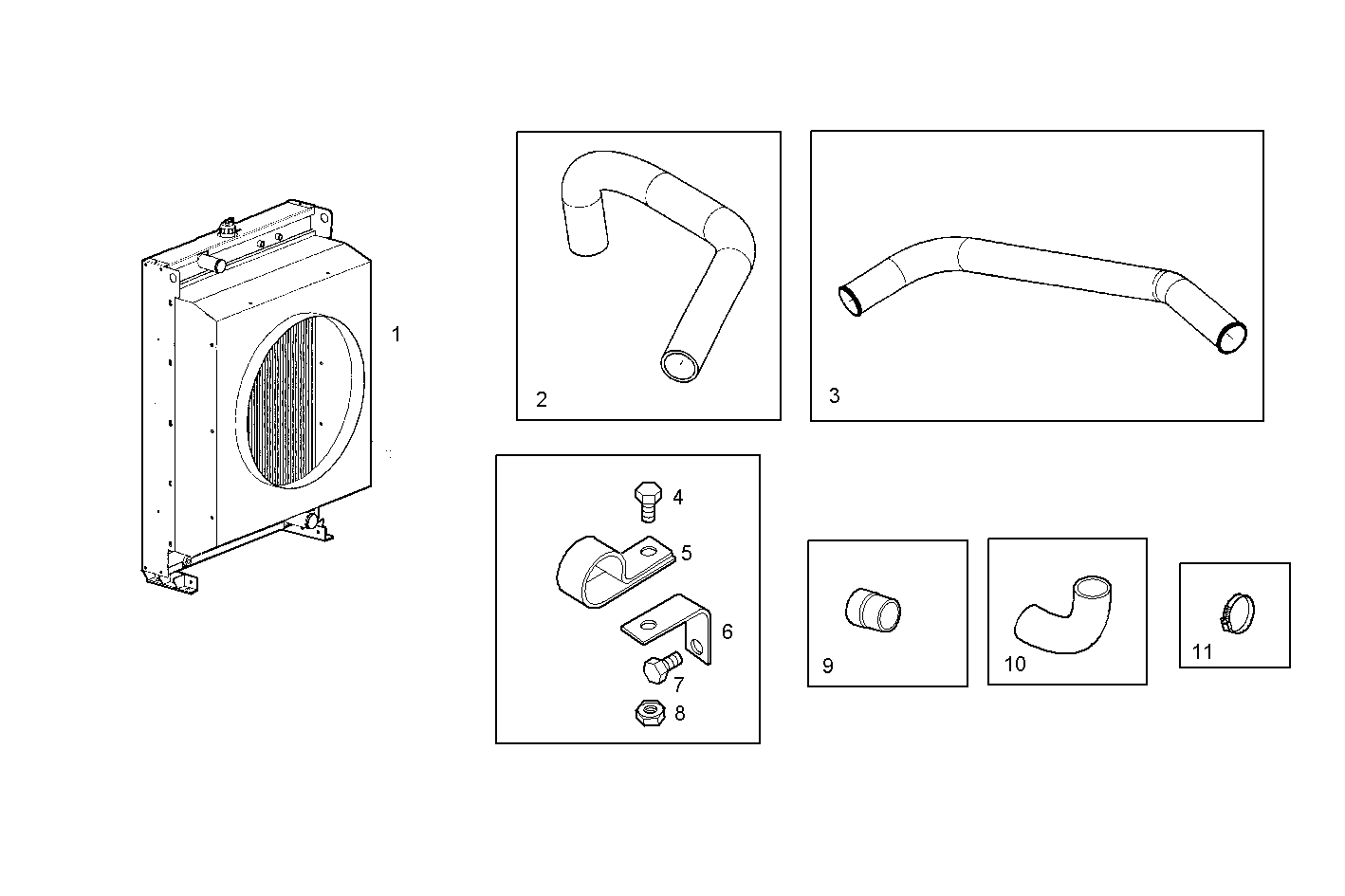

A22080501 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8043648 | WATER RADIATOR |
| 2 | 8043650 | WATER HOSE |
| 3 | 8043651 | WATER PIPE |
| 4 | 18139424 | HEXAGON BOLT M10X20 MM |
| 5 | 8034457 | CLIP |
| 6 | 8044768 | FASTENING BRACKET |
| 7 | 16677735 | HEXAGON BOLT M12X25 MM |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 98432897 | WATER HOSE |
| 10 | 98433319 | RUBBER SLEEVE |
| 11 | 17764892 | PIPE CLIP Ø40-60 MM |
