N67MNTF41.00A001

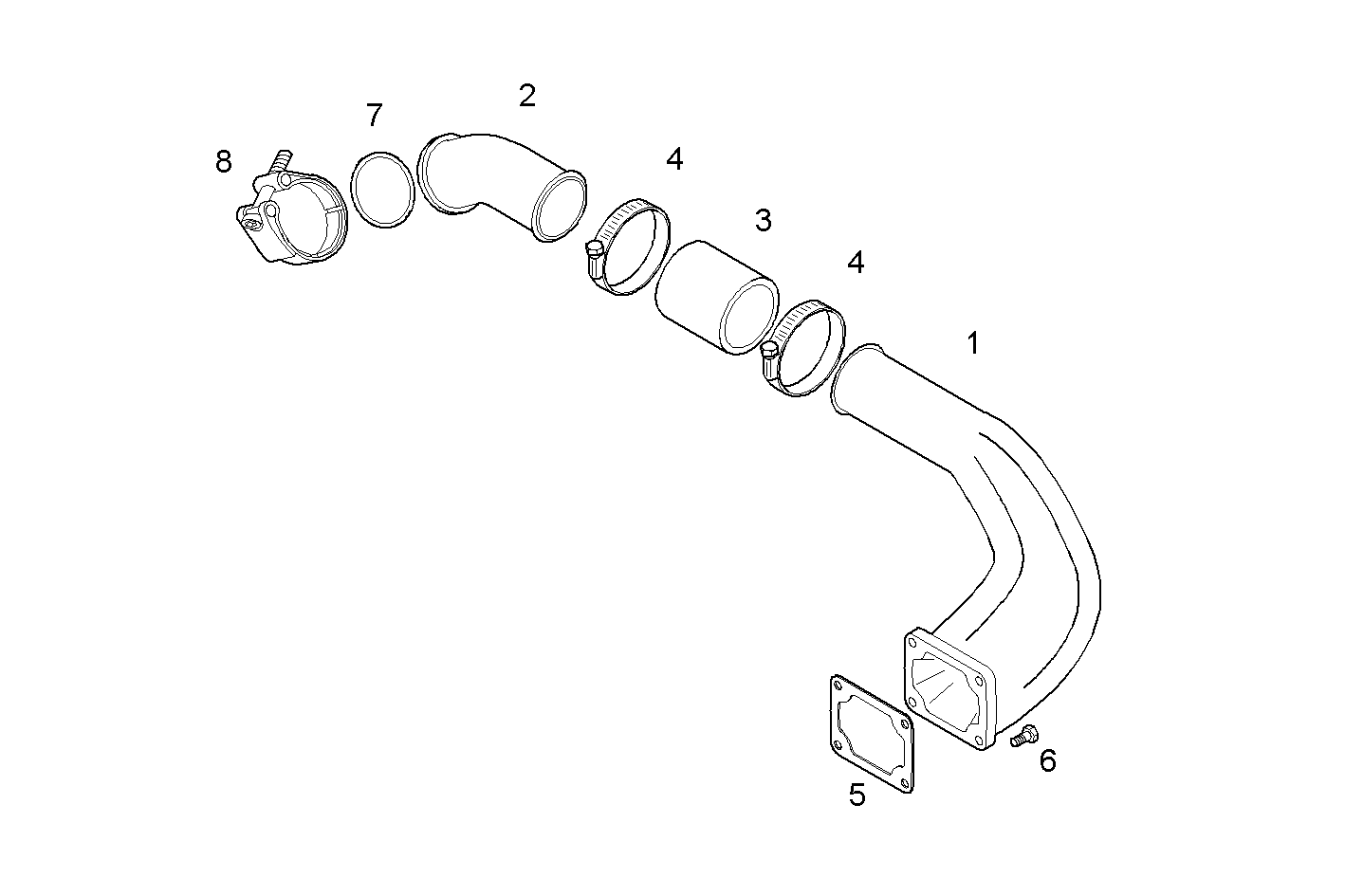

2430.039 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8040030 | AIR PIPE/DUCT |
| 2 | 8042469 | AIR PIPE/DUCT |
| 3 | 504072912 | RUBBER SLEEVE |
| 4 | 17765091 | CLIP Ø60/80 MM |
| 5 | 8031907 | GASKET |
| 6 | 98401723 | HEXAGON BOLT M8X1,25X12 MM |
| 7 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 8 | 504043157 | CLIP |
