N67MNTF41.00A001

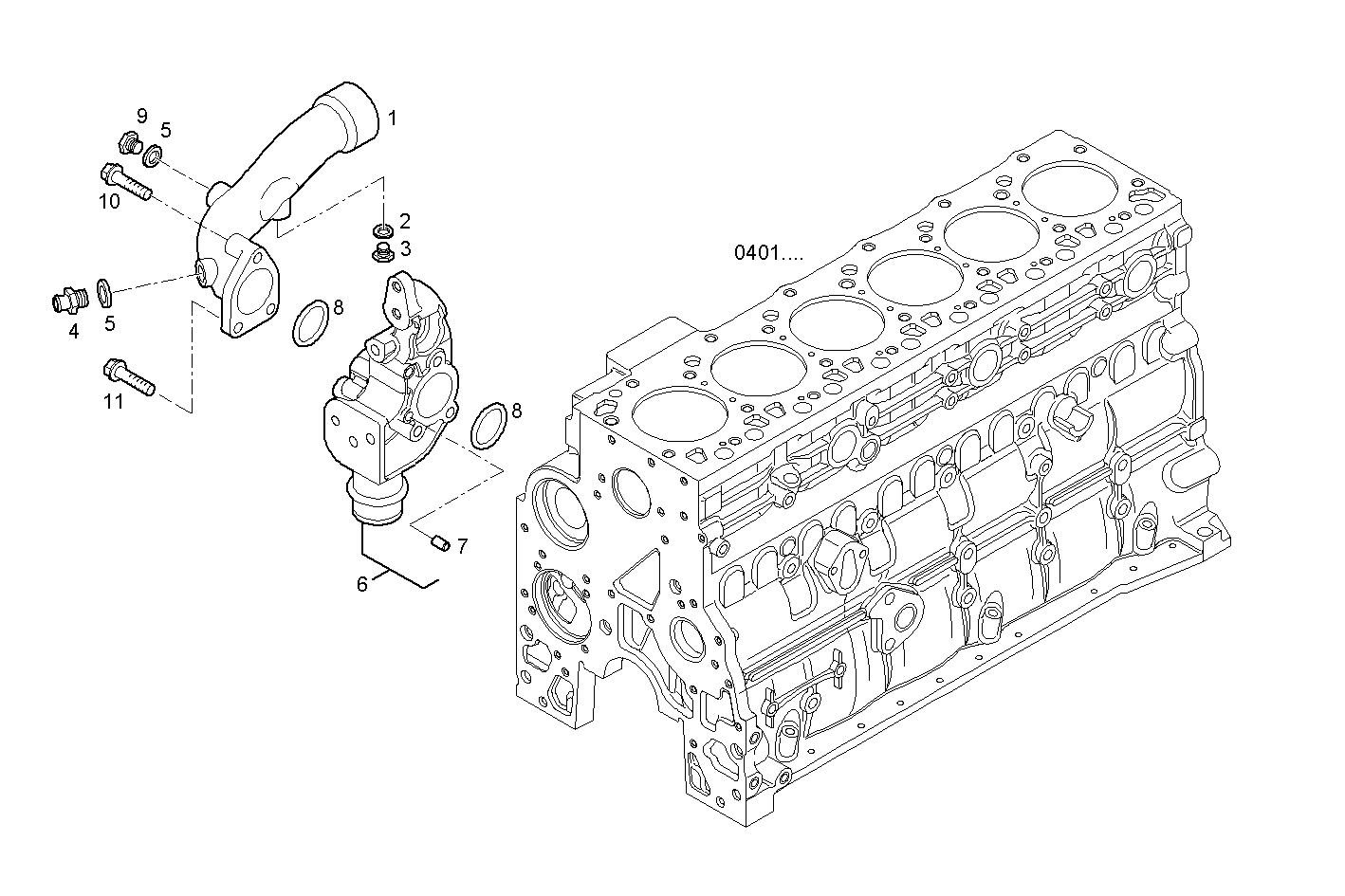

3230.035 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8041904 | WATER PIPE |
| 2 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 3 | 16992440 | THREADED PLUG M16X1,5 |
| 4 | 8024797 | PIPE SOCKET M30X1,5 |
| 5 | 99434480 | SEAL GASKET Ø30X40 MM |
| 6 | 500387647 | GENERATOR SUPPORT ASSY |
| 7 | 4895576 | DOWEL PIN |
| 8 | 504062710 | WASHER |
| 9 | 16993040 | THREADED PLUG M30X1,5 |
| 10 | 16599224 | HEXAGON BOLT M10X140 MM |
| 11 | 16592925 | HEXAGON BOLT M10X80 MM |
