N67MNTM28.10

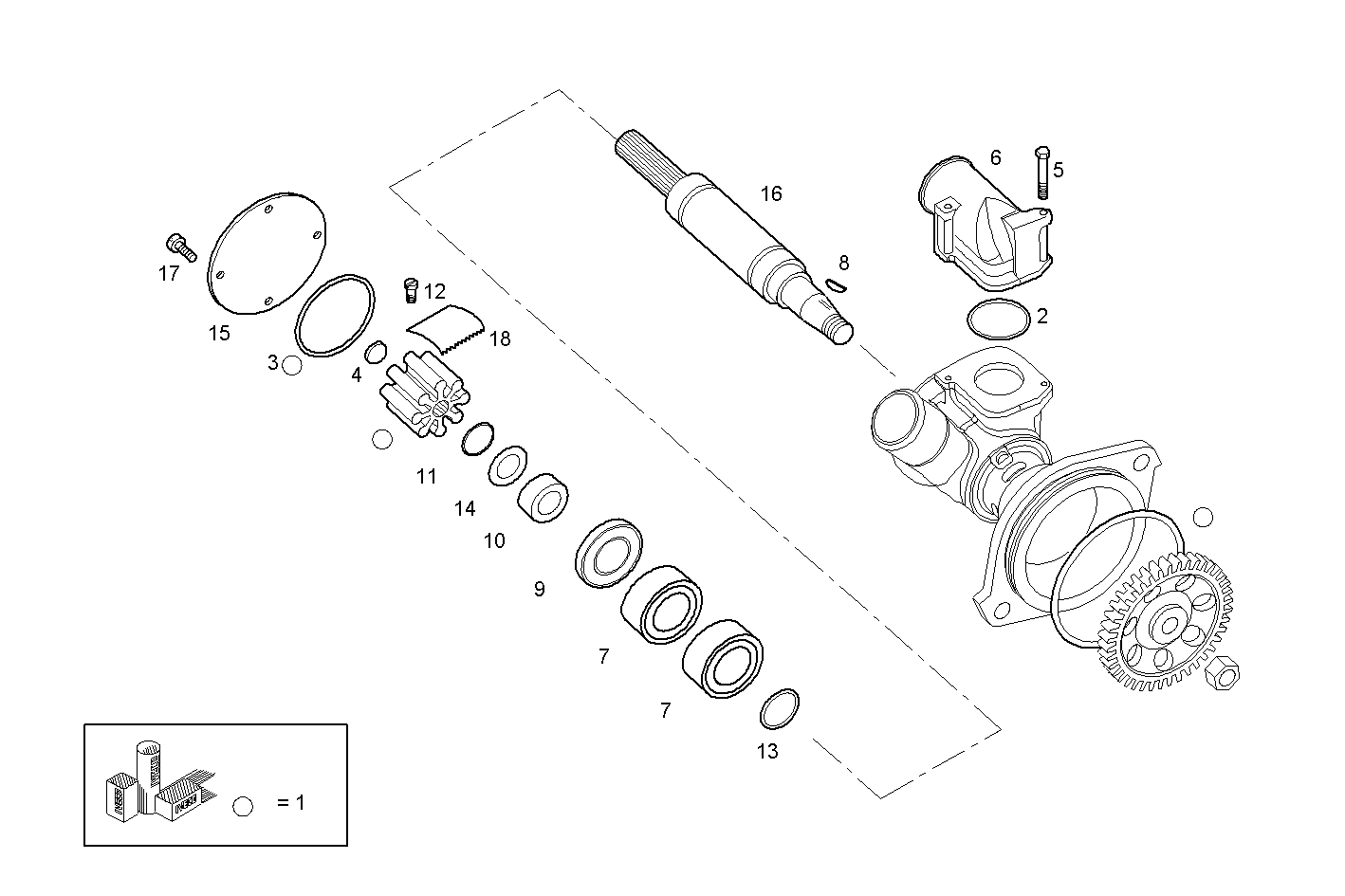

3381.001 SEA WATER PUMP (COMPONENTS) - ANCOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8094616 | SEA-WATER PUMP IMPELL.KIT |
| 2 | 8037361 | O-RING |
| 3 | 8037362 | O-RING |
| 4 | 8037363 | SEAL GASKET |
| 5 | 8094713 | SCREW M6X55 |
| 6 | 8094714 | SEA WATER PIPE |
| 7 | 8094706 | DRIVE BEARING |
| 8 | 8094711 | KEY |
| 9 | 8094707 | WASHER 25X40X8 |
| 10 | 8094702 | WASHER |
| 11 | 8094698 | CIRCLIP 16X1 |
| 12 | 8094715 | SCREW M5X10 |
| 13 | 8094712 | CIRCLIP 52X2 |
| 14 | 8094701 | WASHER |
| 15 | 8094709 | COVER |
| 16 | 8094710 | SHAFT |
| 17 | 8094708 | SCREW M6X12 |
| 18 | 8094985 | RETAINING CAM |
