N67MNTM28.12

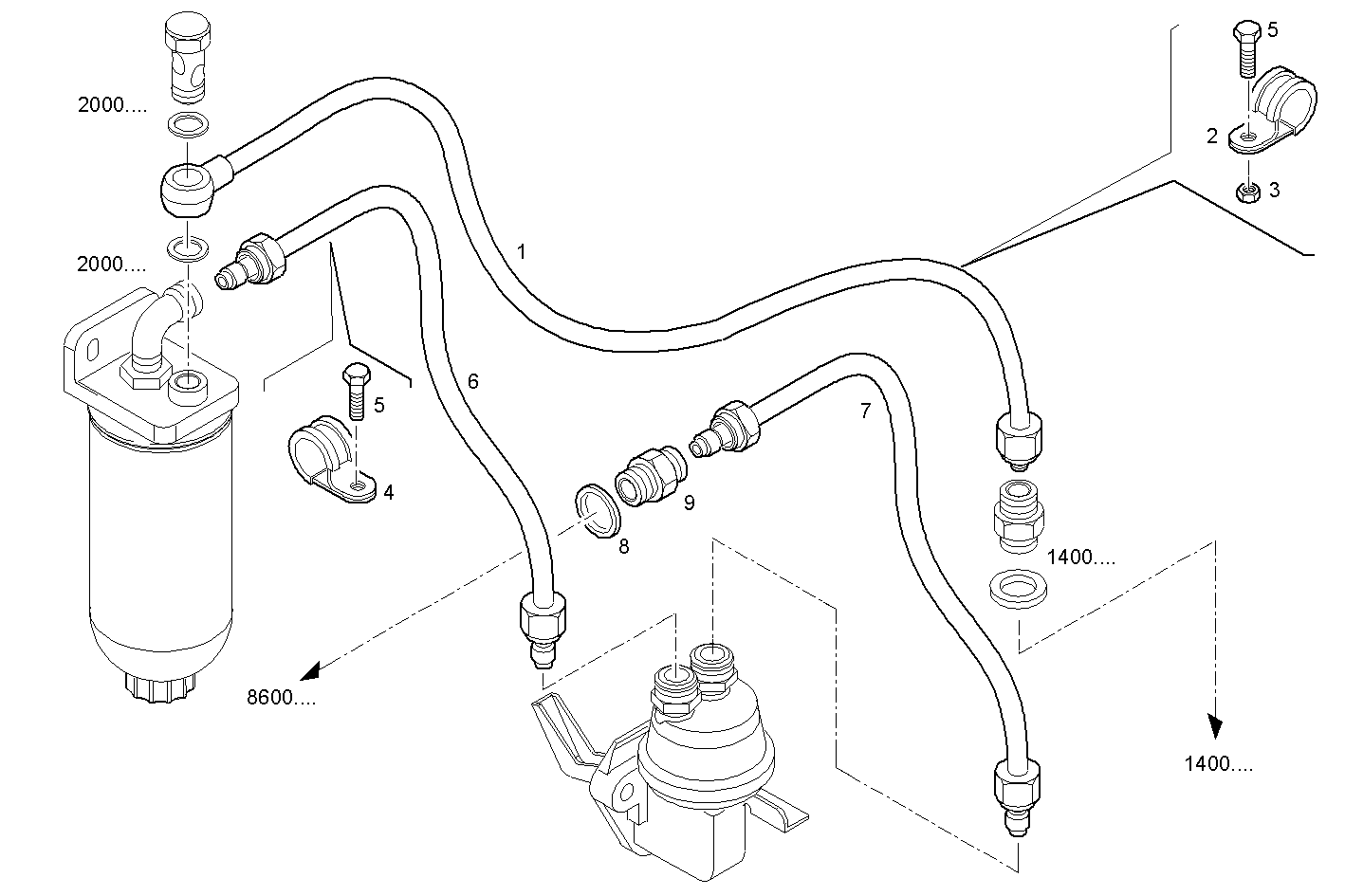

2030.327 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8037500 | FUEL PIPES |
| 2 | 10450090 | PIPE CLIP Ø8 MM |
| 3 | 17044625 | HEXAGON NUT M6 |
| 4 | 10441290 | PIPE CLIP Ø10 MM |
| 5 | 18137825 | HEXAGON BOLT M6X16 |
| 6 | 8050205 | FUEL LINE |
| 7 | 8050253 | FUEL LINE |
| 8 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 9 | 8050357 | THREADED UNION |
