N67MNTM28.12

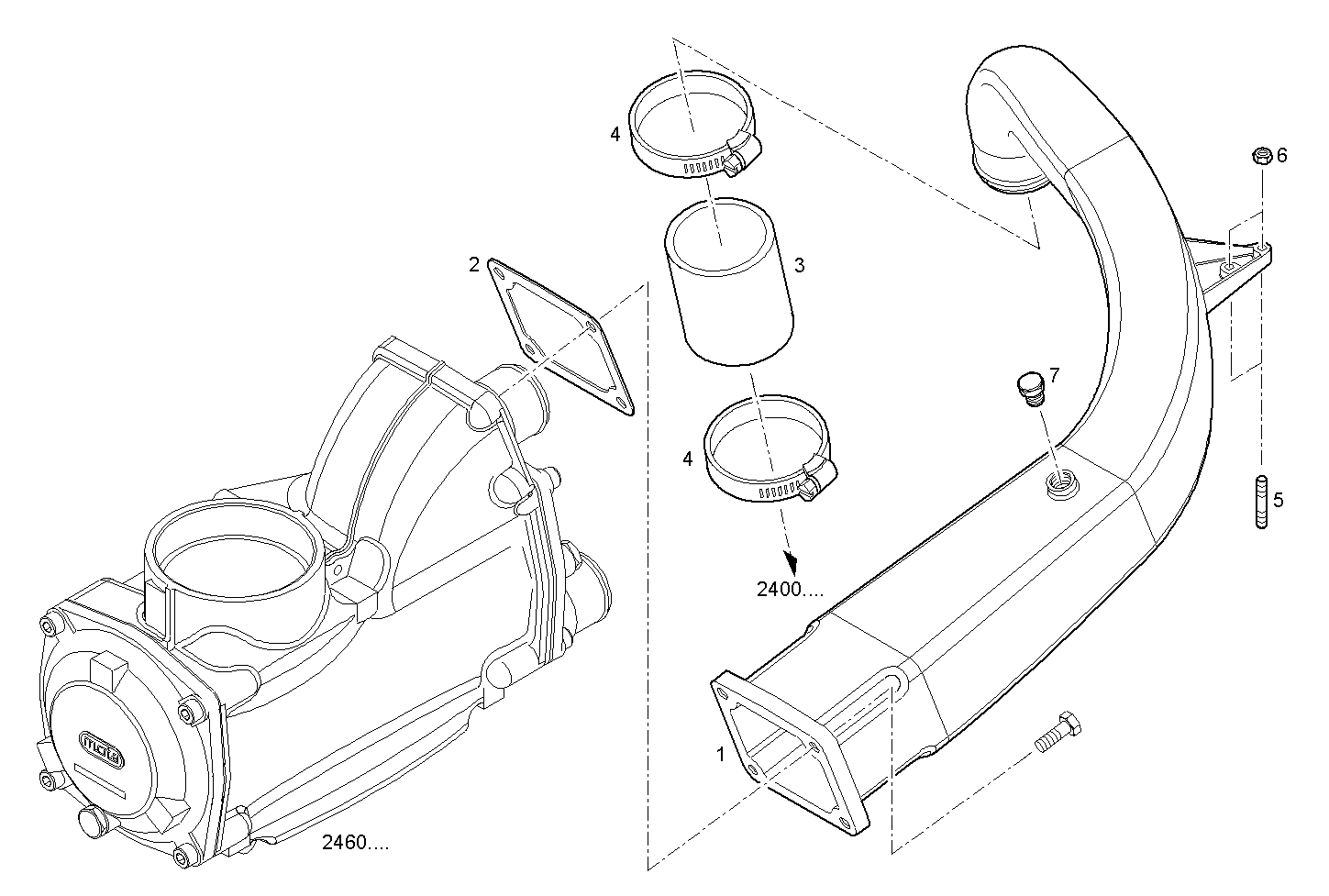

2430.045 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8048274 | AIR PIPE/DUCT |
| 2 | 8031907 | GASKET |
| 3 | 8031793 | RUBBER SLEEVE |
| 4 | 17768399 | CLIP |
| 5 | 16729224 | STUD M8X16 MM |
| 6 | 17044725 | HEXAGON NUT M8 |
| 7 | 16992240 | THREADED PLUG M12X1,5 |
