N67MNTM28.12

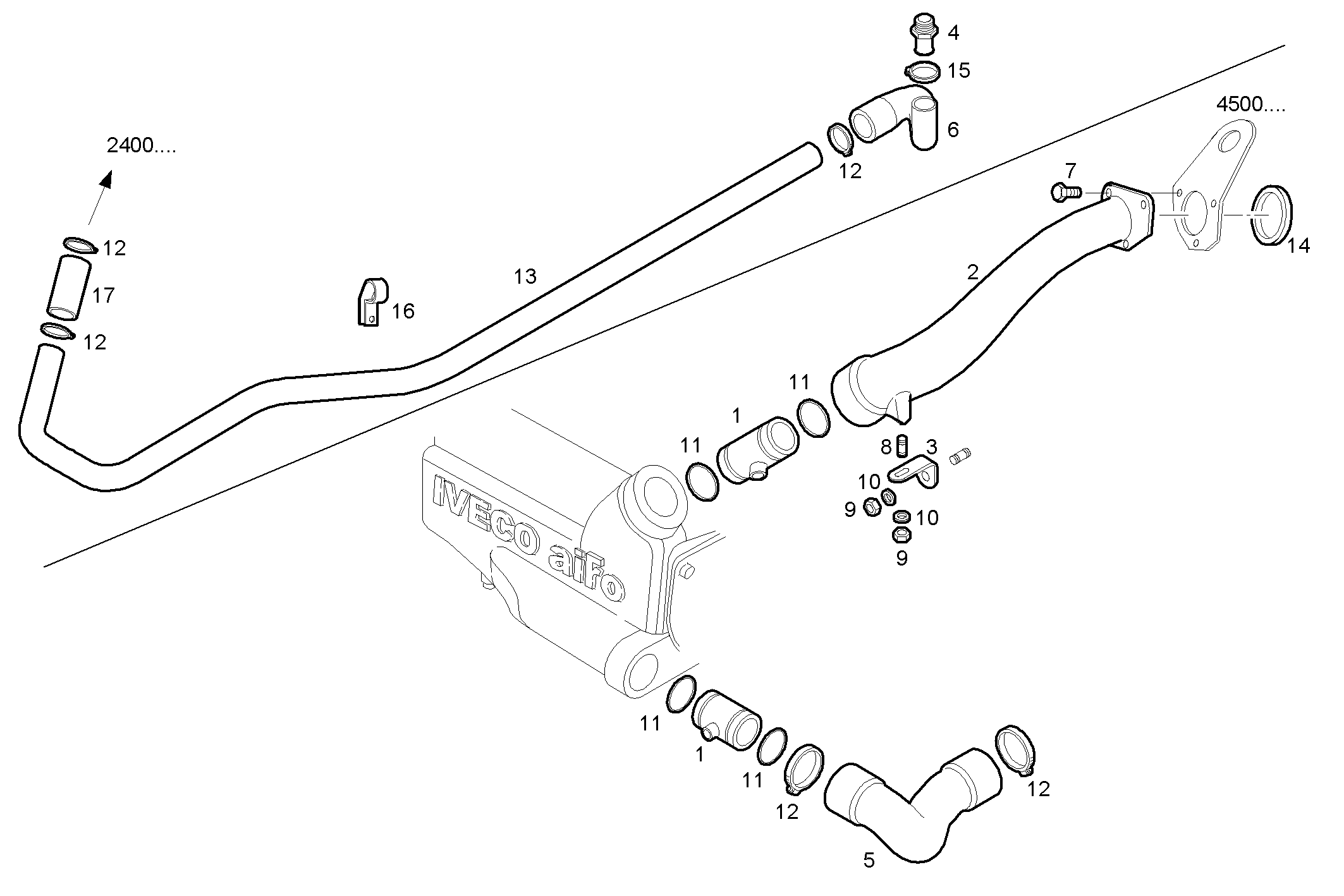

3230.063 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8018308 | CONNECTOR SLEEVE |
| 2 | 8036186 | WATER PIPE |
| 3 | 8031803 | FASTENING BRACKET |
| 4 | 8047482 | THREADED UNION |
| 5 | 8047484 | WATER HOSE |
| 6 | 8047485 | WATER HOSE |
| 7 | 4899091 | HEXAGON BOLT |
| 8 | 16729224 | STUD M8X16 MM |
| 9 | 17037921 | HEXAGON NUT M8X1,25 |
| 10 | 17088374 | WASHER |
| 11 | 4895393 | O-RING |
| 12 | 17764693 | CLIP Ø25/40 MM |
| 13 | 8047486 | PIPE |
| 14 | 504078856 | RUBBER GASKET |
| 15 | 17764593 | CLIP Ø20/32 MM |
| 16 | 4810595 | FASTENING BRACKET |
| 17 | 8040181 | RUBBER SLEEVE |
