N67MNTM28.12

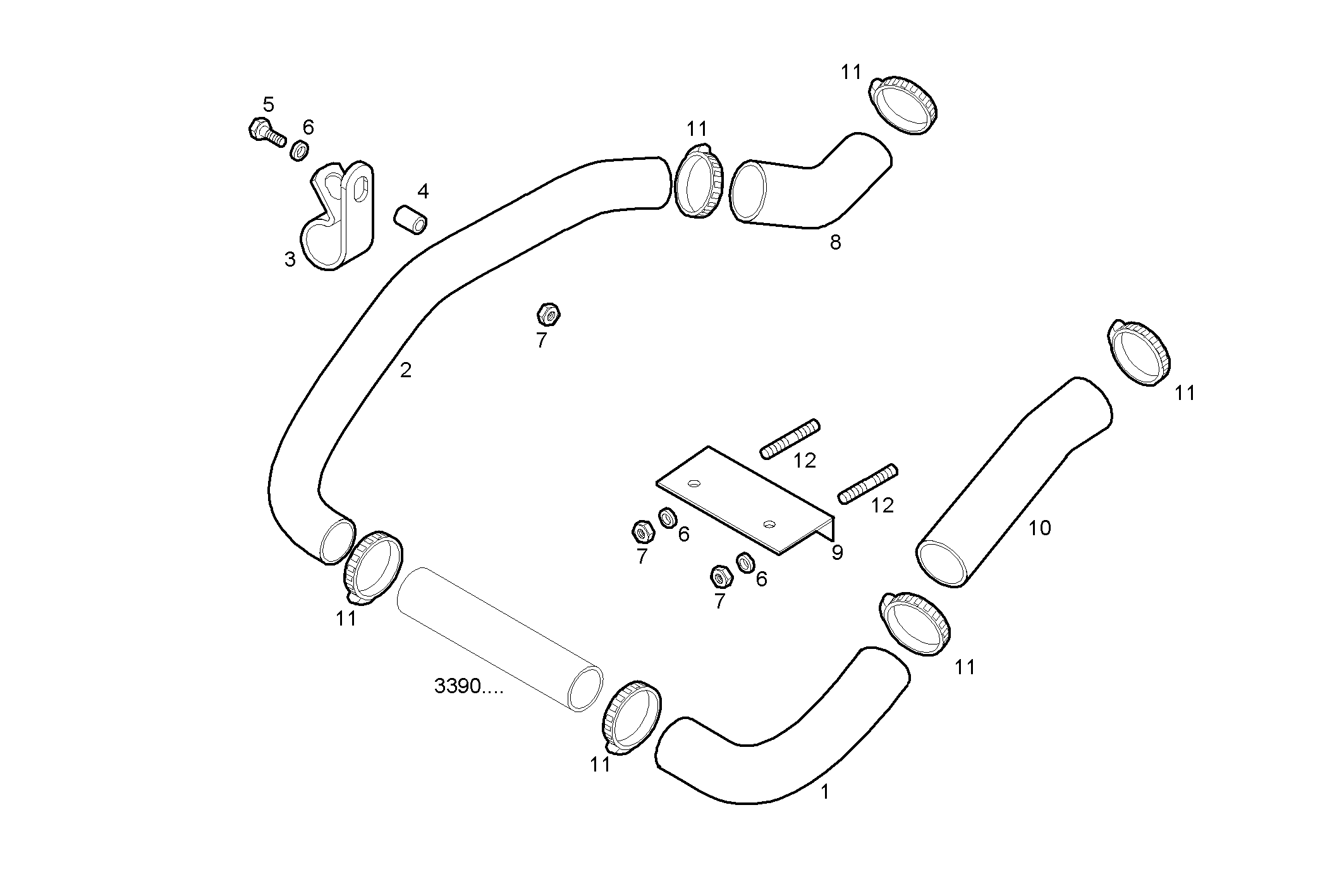

3390.092 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8040155 | RUBBER SLEEVE |
| 2 | 8050027 | SEA WATER PIPE |
| 3 | 8034457 | CLIP |
| 4 | 8028346 | SPACER BUSH |
| 5 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17038131 | HEXAGON NUT M10 |
| 8 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 9 | 8034494 | FASTENING BRACKET |
| 10 | 8050026 | RUBBER SLEEVE |
| 11 | 17764893 | CLIP Ø40/60 MM |
| 12 | 17368024 | STUD M10X25X30 |
