N67MNTM28.31

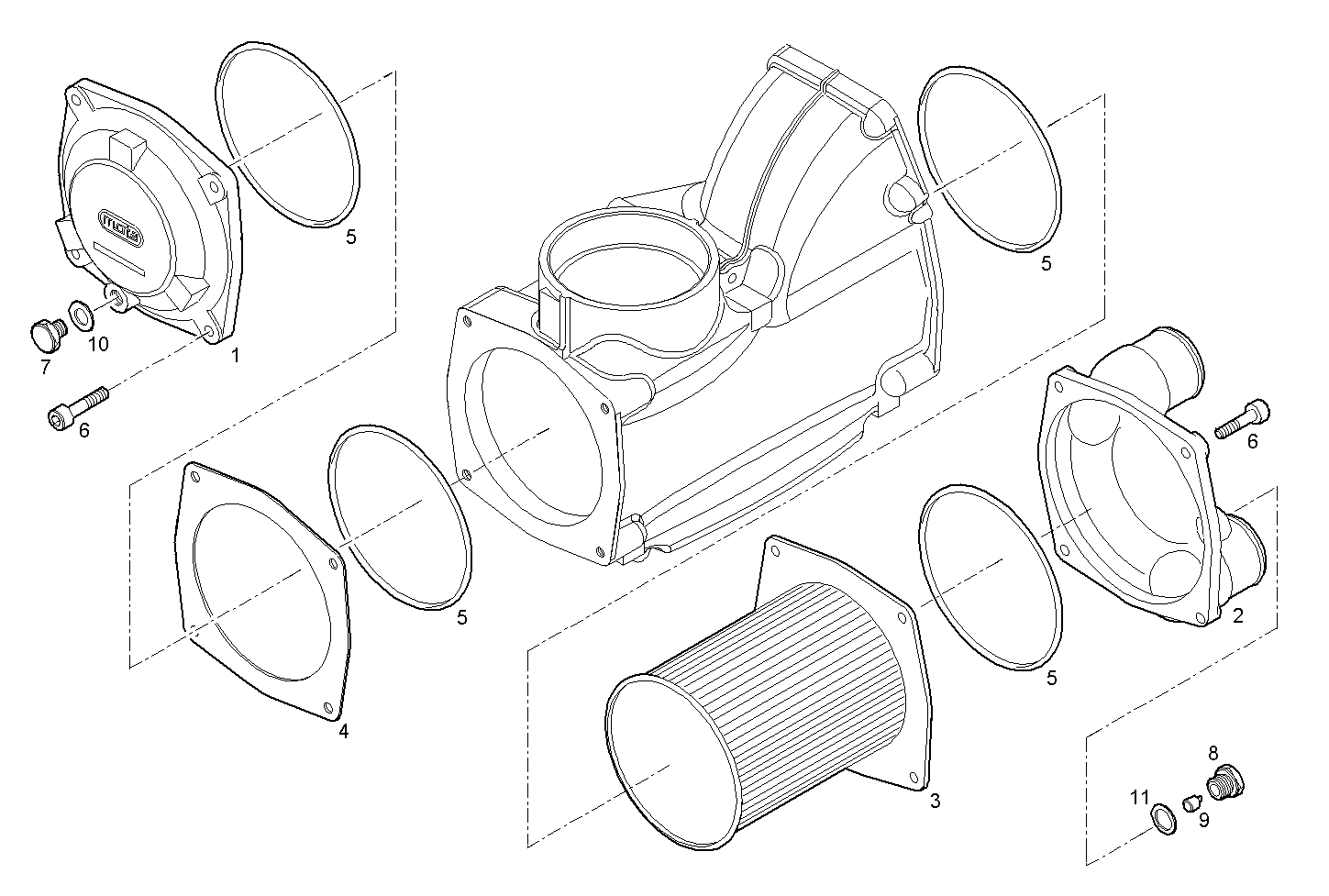

2461.007 AIR - WATER HEAT EXCHANGER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8032516 | COVER FRONT |
| 2 | 8050199 | COVER REAR |
| 3 | 8050148 | TUBE STACK |
| 4 | 8032519 | SPACING BAR |
| 5 | 8032518 | O-RING |
| 6 | 16690924 | CYLIND-HEAD SCREW M8X40 MM |
| 7 | 16992340 | THREADED PLUG M14X1,5 |
| 8 | 8093596 | PLUG |
| 9 | 8093597 | SACRIFICAL ANODE |
| 10 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 11 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
