N67MSAE00.00

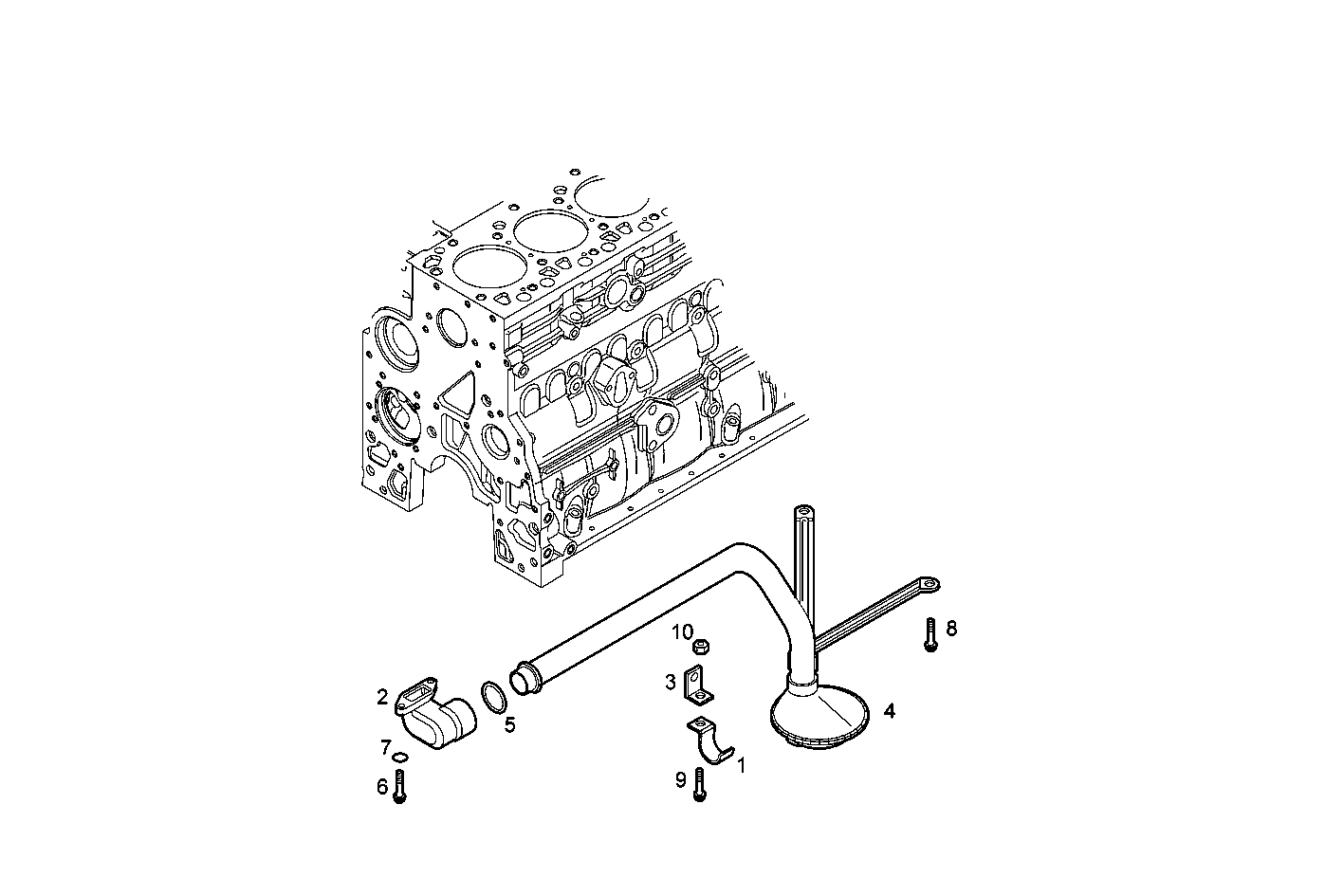

A01050502 OIL SUMP - Incl. 35° rear

Iveco/FPT OIL SUMP

Item Part number Description
1 504047521 PIPE CLIP
2 504048033 PIPE SOCKET
3 504084873 FASTENING BRACKET
4 504082951 SUCTION STRAINER
5 17289281 O-RING Ø34,5 MM SP=3,53 MM
6 16707134 SOCKET-HEAD SCREW M8X20 MM
7 17096824 WASHER Ø8,40X15 MM
8 18139424 HEXAGON BOLT M10X20 MM
9 4899068 HEXAGON BOLT M8X17 MM
10 16984235 HEXAGON NUT M8
