N67MSAE00.00A001

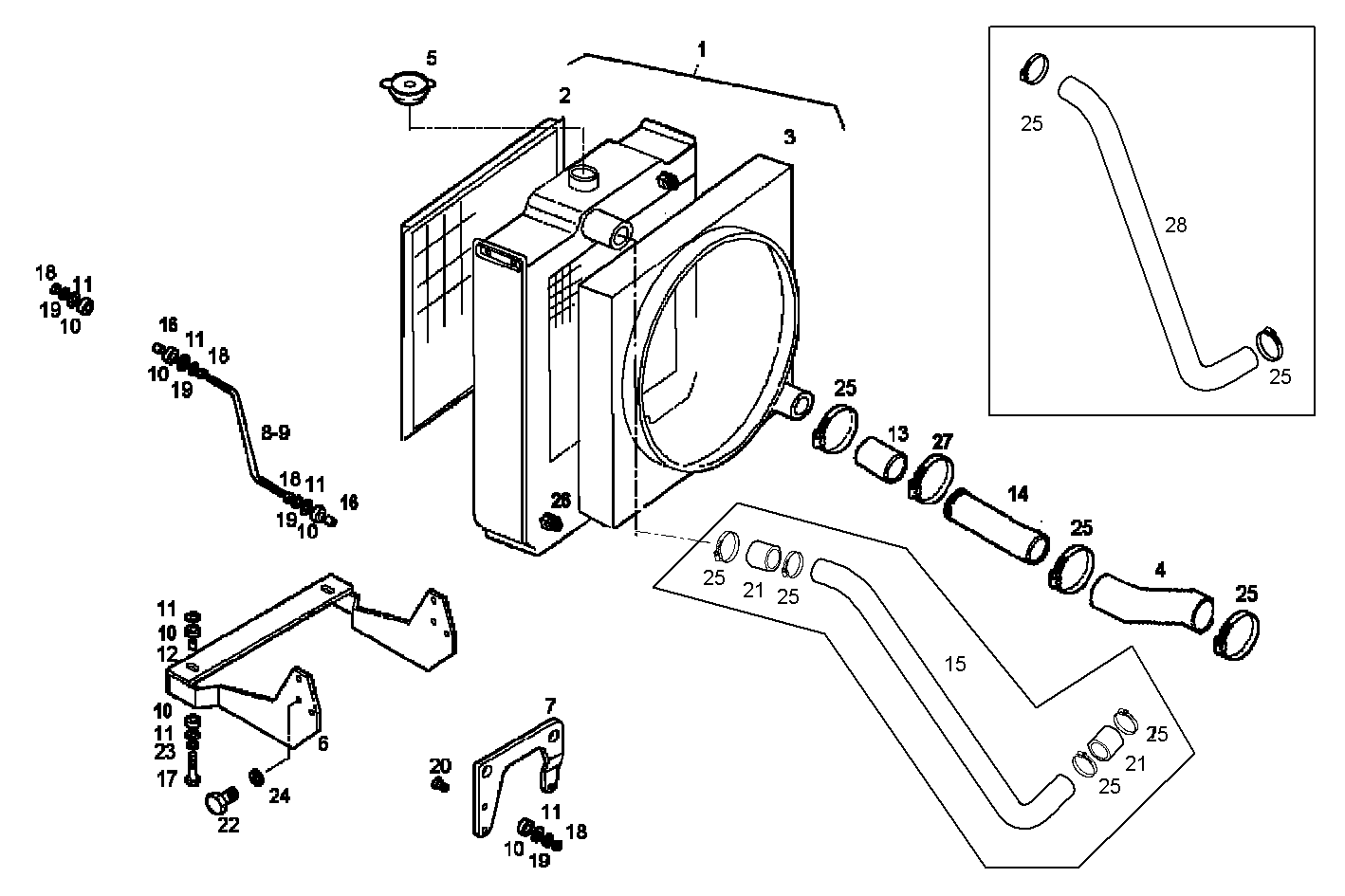

3300.025 RADIATOR

Iveco/FPT RADIATOR

Item Part number Description
1 8041738 WATER RADIATOR
2 8041850 PROTECTION FOR RADIATOR "IBS"
3 8042130 AIR HOOD FOR RADIATOR "IBS"
4 8106646 RUBBER SLEEVE
5 8042178 RADIATOR PLUG FOR RADIATOR "IBS"
6 8044286 SUPPORT for radiator
7 8038584 FASTENING BRACKET
8 8038585 TIE ROD RIGHT
9 8038468 TIE ROD LEFT
10 8042179 RUBBER PAD
11 741570 WASHER Ø10X17 MM SP=2,3
12 8108634 SPACING BAR
13 8034474 RUBBER SLEEVE
14 8034475 WATER PIPE
15 8033603 WATER PIPE [UP TO 31-05-06]
16 741571 SPACING BAR Ø10X17 MM SP=2,3
17 16608525 HEXAGON BOLT M10X1,5X70 MM (8.8)
18 17038425 HEXAGON NUT M12 (8)
19 17091074 WASHER Ø12X24X2,8 MM
20 16586425 HEXAGON BOLT M8X25 MM
21 4863960 WATER HOSE
22 16630034 HEXAGON BOLT M12X40 MM
23 17090274 WASHER Ø10X20 MM
24 17091174 SPRING WASHER Ø12X24 MM
25 17764891 CLIP Ø40/60 MM
26 8094858 PLUG
27 17764991 CLIP Ø50/70 MM
28 8045294 WATER HOSE
