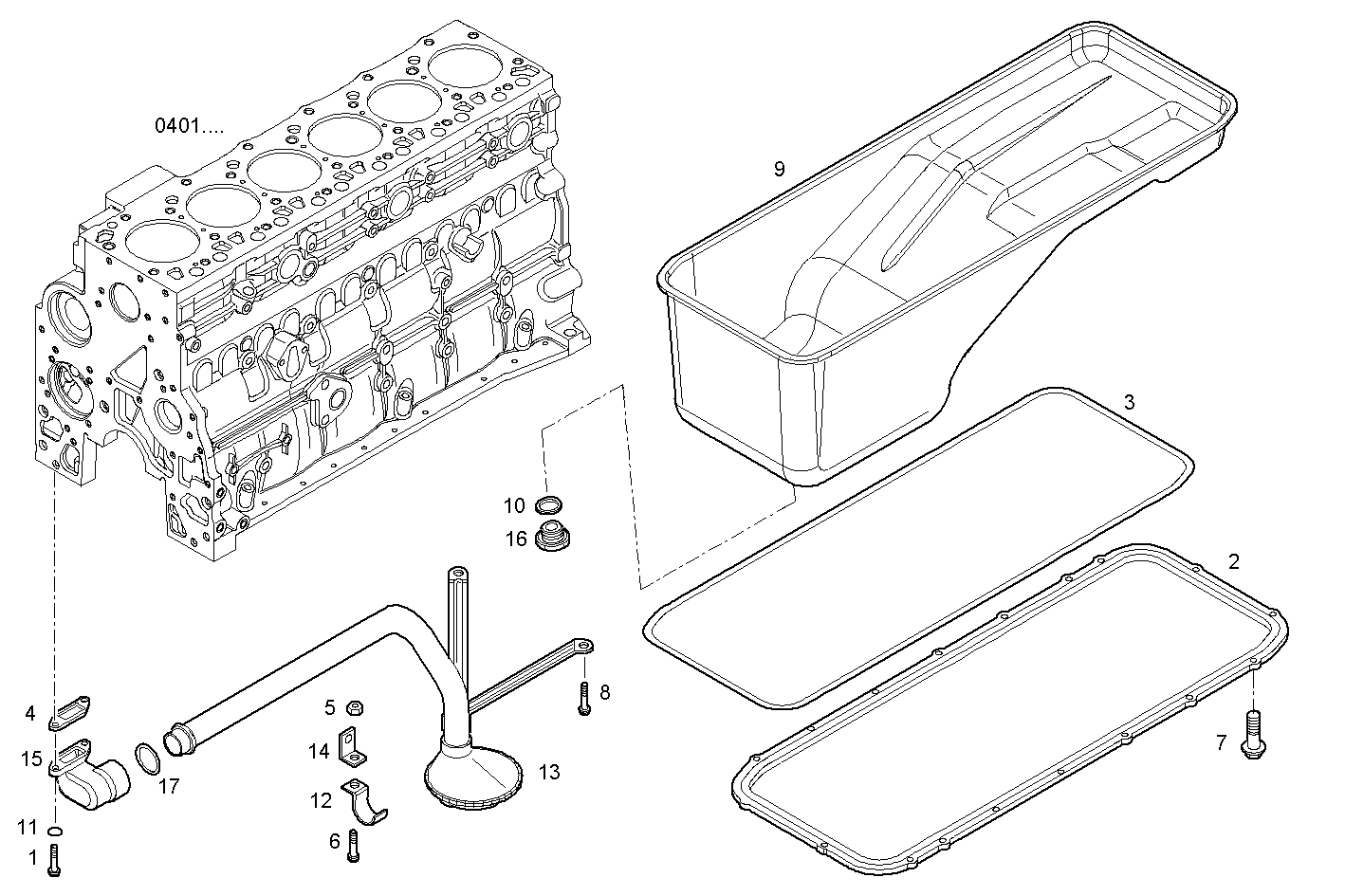

| Item |
Part number |
Description |
|
1 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
2 |
4897858 |
SPACING BAR |
|
3 |
4897861 |
OIL SUMP GASKET |
|
4 |
4898301 |
FLAT ENGINE GASKET |
|
5 |
17044731 |
HEXAGON NUT M8 |
|
6 |
4899068 |
HEXAGON BOLT M8X17 MM |
|
7 |
4899091 |
HEXAGON BOLT |
|
8 |
4895291 |
HEXAGON BOLT M10X1,5X20 MM |
|
9 |
500388254 |
OIL SUMP ASSY |
|
10 |
17282280 |
O-RING �2,62X23,47 MM |
|
11 |
17096824 |
WASHER �8,40X15 MM |
|
12 |
504047521 |
PIPE CLIP |
|
13 |
504082951 |
SUCTION STRAINER |
|
14 |
504084873 |
FASTENING BRACKET |
|
15 |
504271972 |
PIPE SOCKET |
|
16 |
4894139 |
THREADED PLUG M22X1,5 |
|
17 |
17289281 |
O-RING �34,5 MM SP=3,53 MM |
