N67MSAE00.00L011

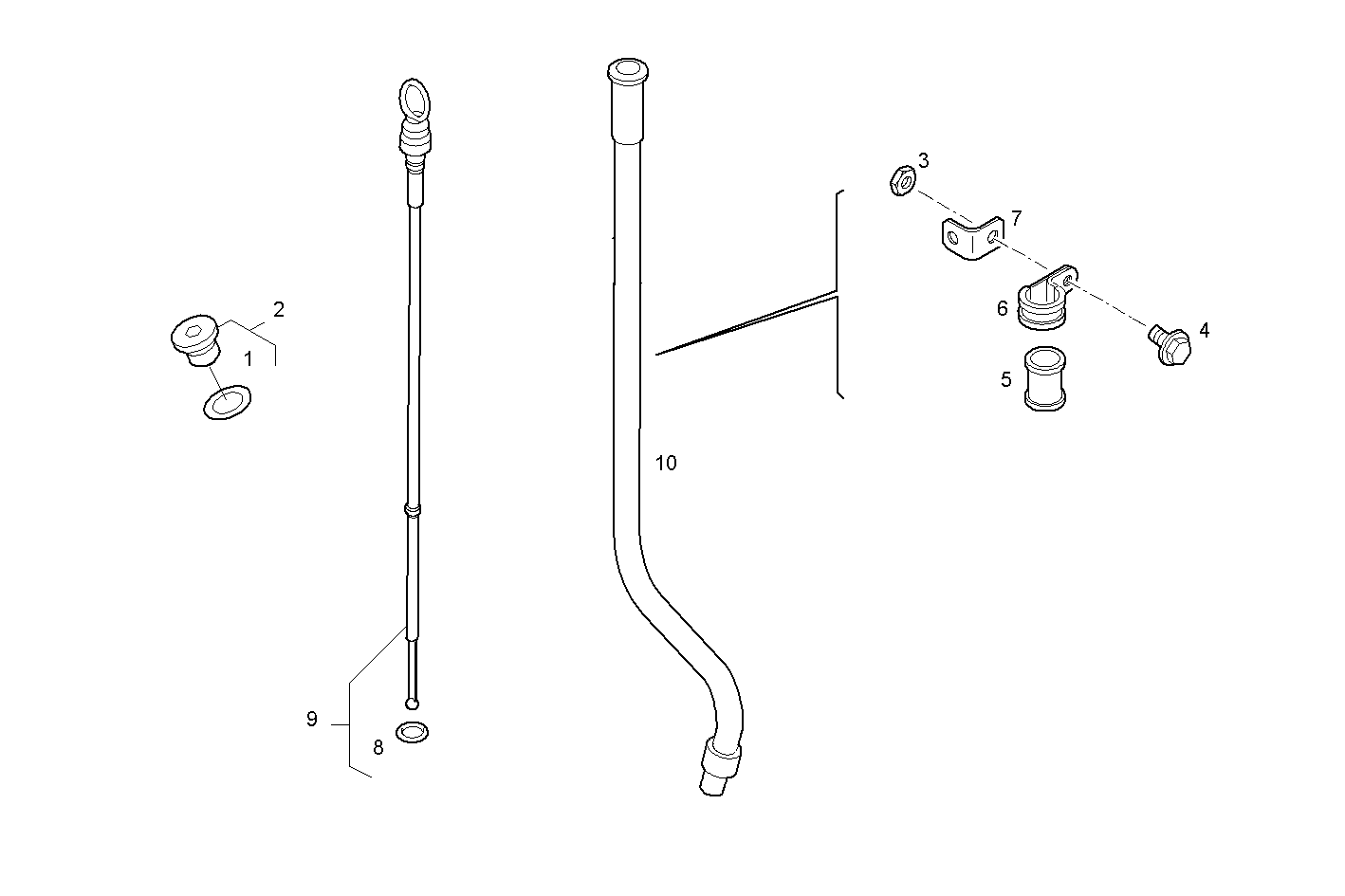

2700.067 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4895610 | O-RING |
| 2 | 4897330 | PLUG ASSY M12X1,5 |
| 3 | 17044725 | HEXAGON NUT M8 |
| 4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 5 | 4755964 | RUBBER PAD |
| 6 | 4755963 | FASTENING BRACKET |
| 7 | 4929652 | RETAINER |
| 8 | 4898502 | O-RING |
| 9 | 8032705 | OIL DIPSTICK ASSY |
| 10 | 8051024 | OIL LEVEL TUBE |
