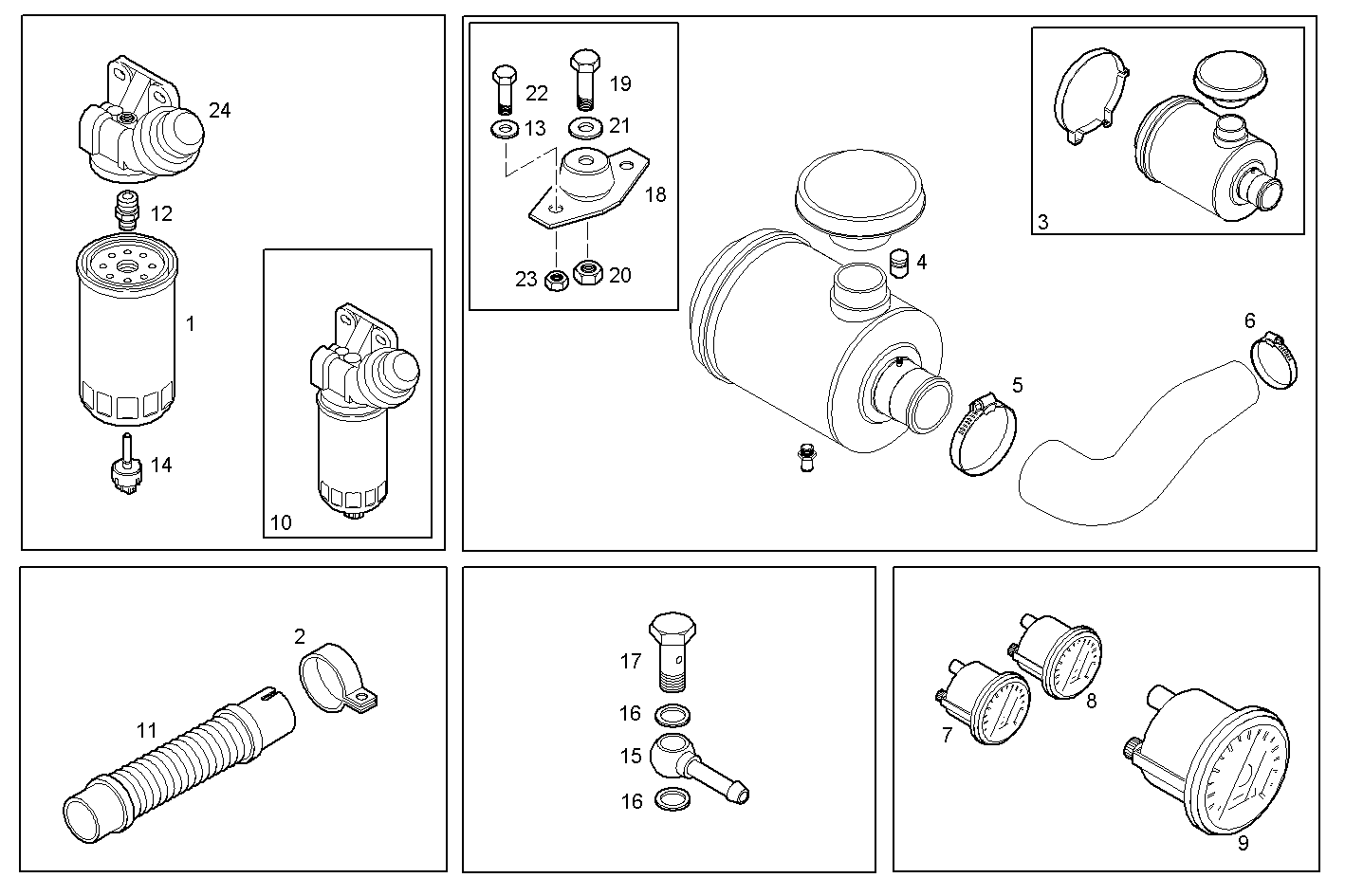

| Item |
Part number |
Description |
|
1 |
2992662 |
FUEL FILTER ELEM. |
|
2 |
8013243 |
CLIP |
|
3 |
8032713 |
AIR CLEANER ASSY |
|
4 |
8027294 |
CHOCKED FILTER INDIC. MECHANICAL |
|
5 |
17765291 |
CLIP Ø80/100 MM |
|
6 |
4788410 |
CLIP Ø92/98 MM |
|
7 |
8025335 |
PRESSURE GAUGE |
|
8 |
8025333 |
THERMOMETER |
|
9 |
8025330 |
REVOLUTION COUNTER |
|
10 |
504057743 |
PREFILTER ASSY |
|
11 |
8013179 |
EXHAUST BELLOWS |
|
12 |
42545574 |
THREADED UNION |
|
13 |
17090074 |
SPRING WASHER Ø10X20X1,9 MM |
|
14 |
42540203 |
SENSOR WATER |
|
15 |
4864069 |
PIPE SOCKET |
|
16 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
17 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
18 |
4911960 |
RUBBER PAD |
|
19 |
16615024 |
SCREW M16 |
|
20 |
17038931 |
HEXAGON NUT M16X2 |
|
21 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
22 |
16607825 |
HEXAGON BOLT M10X35 MM |
|
23 |
17038131 |
HEXAGON NUT M10 |
|
24 |
42545573 |
FUEL FILT.SUPPORT |
