N67MSAE00.00L011

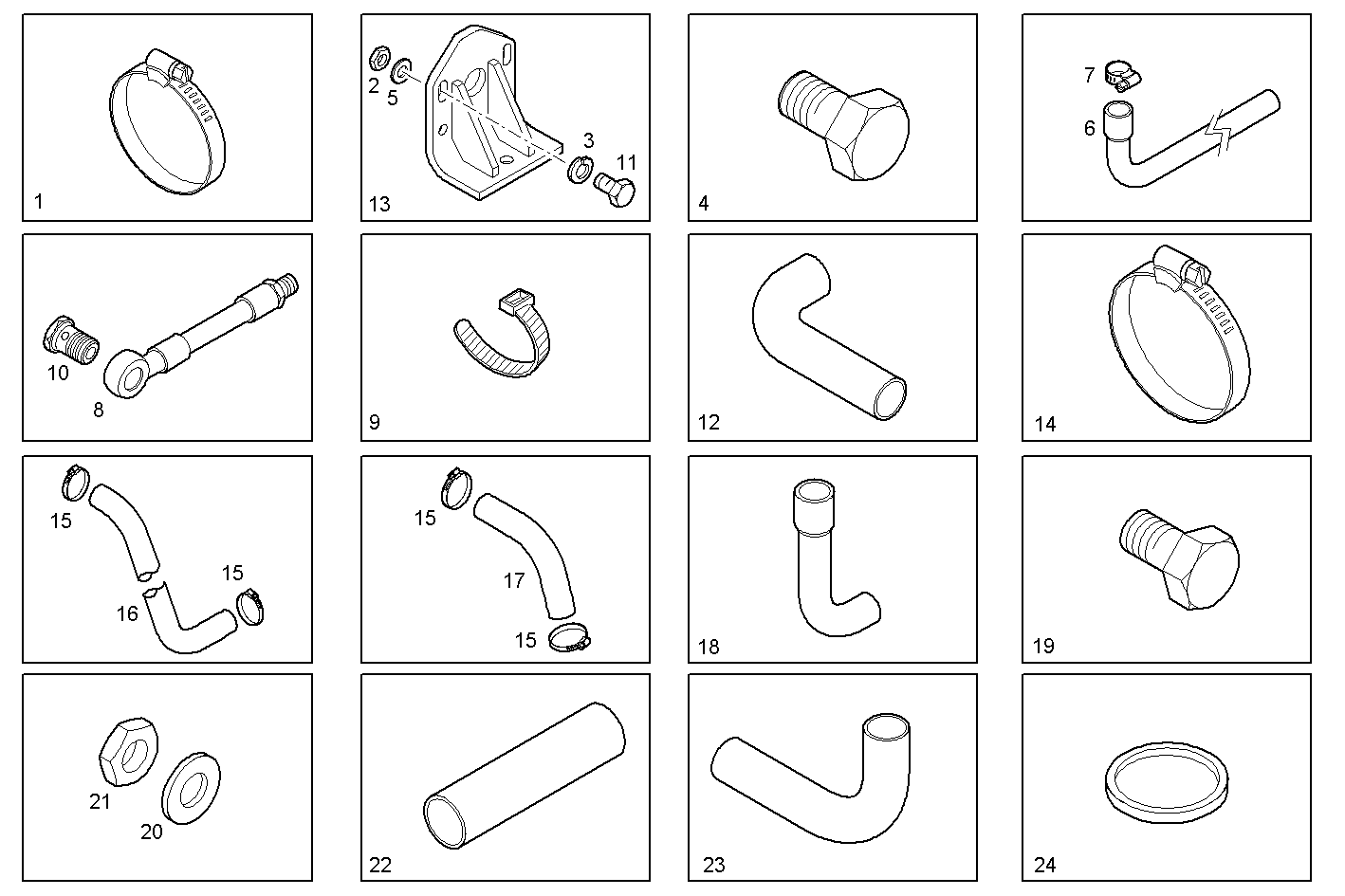

8600.326/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 17765291 | CLIP �80/100 MM |
| 2 | 17038425 | HEXAGON NUT M12 (8) |
| 3 | 17090974 | SPRING WASHER �12X24 MM |
| 4 | 4873305 | SCREW |
| 5 | 8113726 | WASHER |
| 6 | 99456557 | RUBBER SLEEVE |
| 7 | 17764594 | HOSE CLIP |
| 8 | 8038421 | AIR PIPE/DUCT |
| 9 | 14560187 | CABLE STRAP |
| 10 | 4629222 | SCREW CONNECTOR |
| 11 | 16610035 | SCREW M12X35 MM |
| 12 | 8050562 | FILTER HOSE |
| 13 | 8049187 | RETAINER |
| 14 | 4788410 | CLIP �92/98 MM |
| 15 | 17764991 | CLIP �50/70 MM |
| 16 | 8045294 | WATER HOSE |
| 17 | 8041439 | WATER PIPE |
| 18 | 8039375 | RUBBER SLEEVE |
| 19 | 16614624 | HEXAGON BOLT M16X40 MM |
| 20 | 17092774 | WASHER �20X38X4,6 MM |
| 21 | 17039321 | NUT M20X2,5 |
| 22 | 17724687 | HOSE |
| 23 | 17724587 | RUBBER HOSE �7,5X14,5 MM |
| 24 | 98429281 | SEAL GASKET �24X31 MM SP=1,5 MM |
