N67MSAE00.00L011

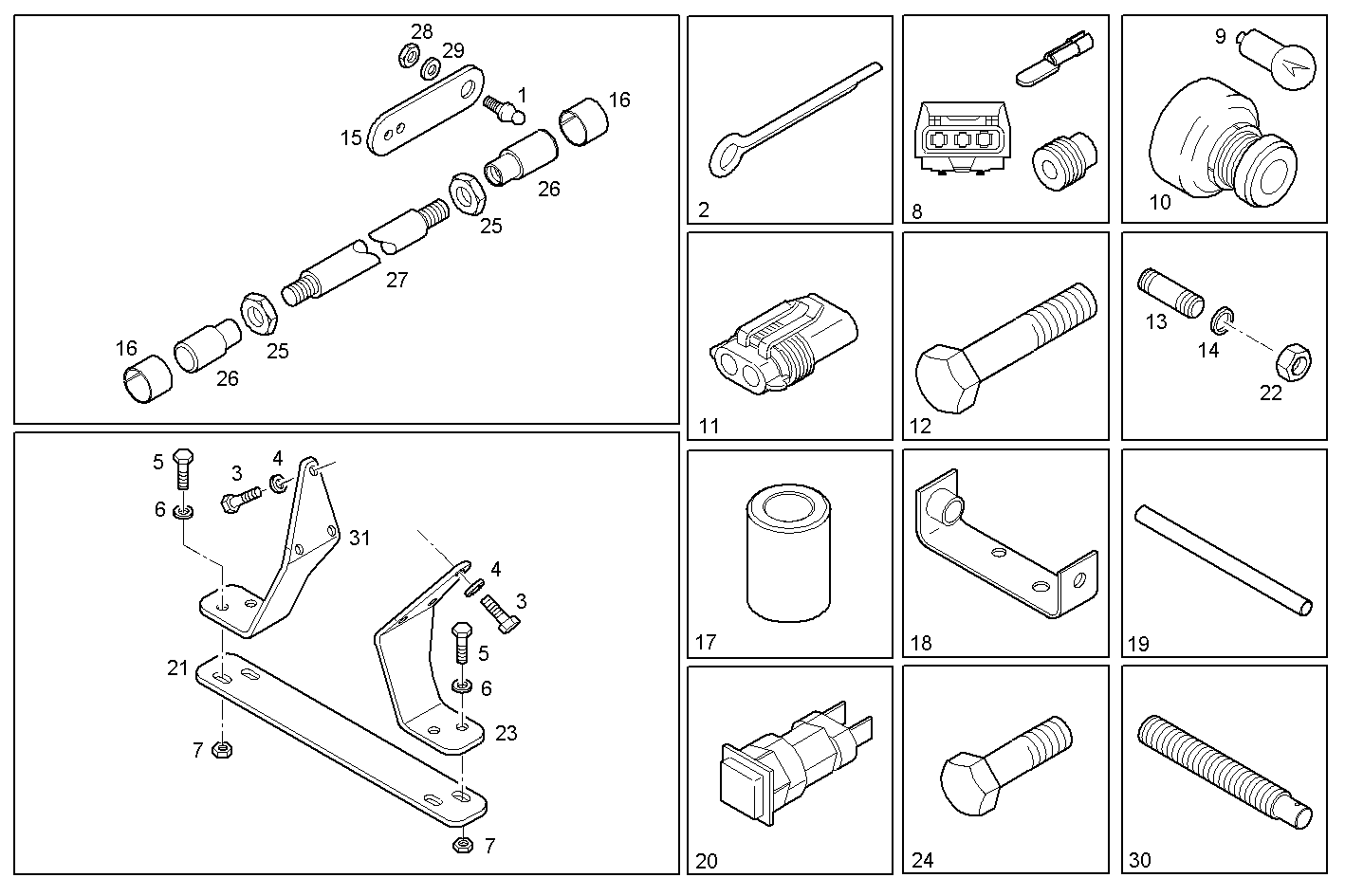

8600.326/03 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
18008411 |
PIN M6 |
|
2 |
16855901 |
DOWEL PIN |
|
3 |
16614624 |
HEXAGON BOLT M16X40 MM |
|
4 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
|
5 |
16588225 |
HEXAGON BOLT M12X40 MM |
|
6 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
7 |
17038425 |
HEXAGON NUT M12 (8) |
|
8 |
8030575 |
CONNECTION ASSY |
|
9 |
14142390 |
LAMP |
|
10 |
8103708 |
SWITCH |
|
11 |
8033709 |
CONNECTION ASSY |
|
12 |
16617924 |
SCREW |
|
13 |
16735424 |
STUD M14X2X20X40 |
|
14 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
15 |
8051845 |
ACCELERATOR PEDAL |
|
16 |
17722174 |
CLIP |
|
17 |
8051850 |
SPACING BAR |
|
18 |
8051846 |
RETAINER |
|
19 |
8051795 |
BREATHER PIPE |
|
20 |
8050753 |
WARNING LIGHT |
|
21 |
8050681 |
SUPPORT |
|
22 |
17038725 |
NUT M14 |
|
23 |
8050679 |
SUPPORT LEFT |
|
24 |
16592925 |
HEXAGON BOLT M10X80 MM |
|
25 |
16979335 |
NUT M6X1 |
|
26 |
17721111 |
BALL HEAD |
|
27 |
4928016 |
TIE ROD |
|
28 |
17037821 |
HEXAGON NUT M6X1 |
|
29 |
17088474 |
WASHER Ø6X12 MM |
|
30 |
8051849 |
WORM GEAR M12X1,75 |
|
31 |
8050680 |
SUPPORT RIGHT |
