NEF45SM1F.S500

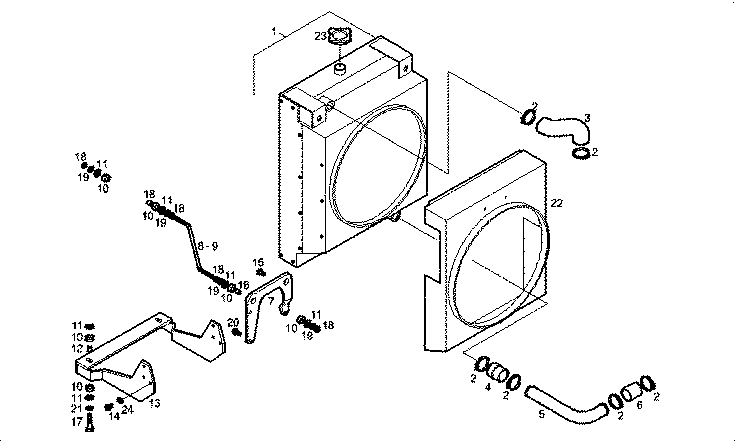

139618 OVERSIZE RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 5801619807 | WATER RADIATOR |
| 2 | 17764892 | PIPE CLIP Ø40-60 MM |
| 3 | 8045294 | WATER HOSE |
| 4 | 8048889 | WATER HOSE |
| 5 | 5801725191 | AIR PIPE/DUCT |
| 6 | 17743887 | RUBBER SLEEVE |
| 7 | 8038584 | FASTENING BRACKET |
| 8 | 8038585 | TIE ROD RIGHT |
| 9 | 8038468 | TIE ROD LEFT |
| 10 | 5801379746 | RUBBER LUG |
| 11 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 12 | 8108634 | SPACING BAR |
| 13 | 8038464 | SUPPORT |
| 14 | 16630034 | HEXAGON BOLT M12X40 MM |
| 15 | 16587125 | HEXAGON BOLT M10X25 MM |
| 16 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 17 | 16608525 | HEXAGON BOLT M10X1,5X70 MM (8.8) |
| 18 | 17038425 | HEXAGON NUT M12 (8) |
| 19 | 17091074 | WASHER Ø12X24X2,8 MM |
| 20 | 16673735 | HEXAGON BOLT M8X25 MM |
| 21 | 17090274 | WASHER Ø10X20 MM |
| 22 | 5801619810 | AIR HOOD |
| 23 | 8050230 | RADIATOR PLUG 1 BAR |
| 24 | 17091174 | SPRING WASHER Ø12X24 MM |
