NEF45TE1F.S550

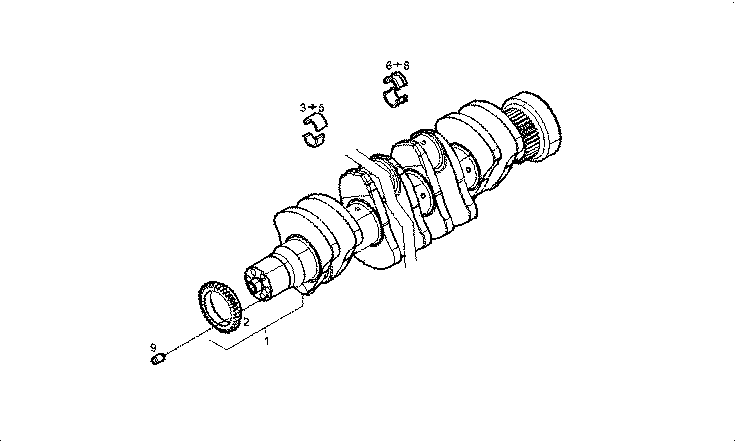

126290 CRANK SHAFT ASSEMBLY

Iveco/FPT CRANK SHAFT ASSEMBLY

Item Part number Description
1 504345406 CRANK SHAFT
2 4893386 CAMSHAFT PINION
3 2995787 MAIN BEARING STD.
4 2995788 MAIN BEARING-0,250
5 2995789 MAIN BEARING-0,500
6 2995784 MAIN BEARING STD. THRUST
7 2995785 MAIN BEARING-0,250 THRUST
8 2995786 MAIN BEARING-0,500 THRUST
9 4899046 DOWEL PIN
