NEF45TE2F.S550

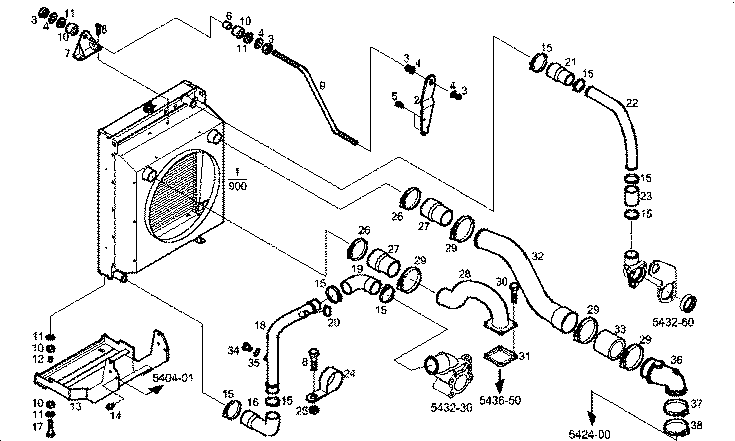

157604 OVERSIZE RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 5801589901 | WATER RADIATOR |
| 2 | 8037825 | RETAINER |
| 3 | 17038425 | HEXAGON NUT M12 (8) |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 5 | 16673735 | HEXAGON BOLT M8X25 MM |
| 6 | FPT741571 | SPACING BAR |
| 7 | 8019397 | RETAINER |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 5801591022 | TIE ROD |
| 10 | 741569 | RUBBER LUG |
| 11 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 12 | 8108634 | SPACING BAR |
| 13 | 5801595209 | SUPPORT |
| 14 | 16588225 | HEXAGON BOLT M12X40 MM |
| 15 | 17764892 | PIPE CLIP Ø40-60 MM |
| 16 | 5801488234 | RUBBER SLEEVE |
| 17 | 16593224 | HEXAGON BOLT M12X1,7X80 MM |
| 18 | 5801589952 | WATER PIPE |
| 19 | 8039375 | RUBBER SLEEVE |
| 20 | 17764594 | HOSE CLIP |
| 21 | 5801604693 | RUBBER SLEEVE |
| 22 | 5801586938 | WATER PIPE |
| 23 | 5801604692 | RUBBER SLEEVE |
| 24 | 8034457 | CLIP |
| 25 | 17044725 | HEXAGON NUT M8 |
| 26 | 17765291 | CLIP Ø80/100 MM |
| 27 | 5801488311 | RUBBER SLEEVE |
| 28 | 5801586924 | AIR PIPE/DUCT |
| 29 | 17765091 | CLIP Ø60/80 MM |
| 30 | 16586625 | HEXAGON BOLT M8X35 MM |
| 31 | 4899921 | FLAT ENGINE GASKET |
| 32 | 5801586942 | AIR PIPE/DUCT |
| 33 | 8036376 | WATER HOSE |
| 34 | 16992215 | THREADED PLUG M12X1,5 |
| 35 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 36 | 5801589924 | AIR PIPE/DUCT |
| 37 | 17284281 | O-RING Ø55,24X2,62 MM |
| 38 | 504043155 | CLIP |
