NEF45TE3Y.S500
163825 SYSTEM-ELECTRICAL

Iveco/FPT SYSTEM-ELECTRICAL

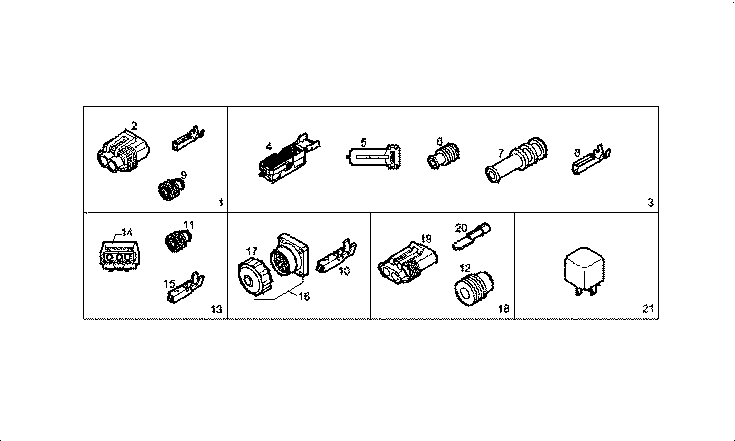

Item Part number Description
1 8030571 WIRE CONNECTOR assy 2 pin female - packard
2 12330587 WIRE CONNECTOR
3 8030193 WIRE CONNECTOR assy 5 pin female
4 500363489 WIRE CONNECTOR
5 500363580 TERMINAL
6 500363578 COVER
7 500395785 RUBBER BUSH
8 500363737 RUBBER BUSH
9 12329982 GASKET
10 99462549 TERMINAL
11 4835259 GASKET
12 4861936 RUBBER BUSH YELLOW
13 8030575 CONNECTION ASSY
14 99430234 PLUG COUPLING
15 12309290 TERMINAL
16 8034787 WIRE CONNECTOR ASSY
17 8033302 CAP
18 8030574 WIRE CONNECTOR ASSY [UP TO 27-06-05]
19 12331387 CONNECTION
20 98435372 TERMINAL
21 500362250 RELAY 50A 24V
