NEF45TM1.1A558

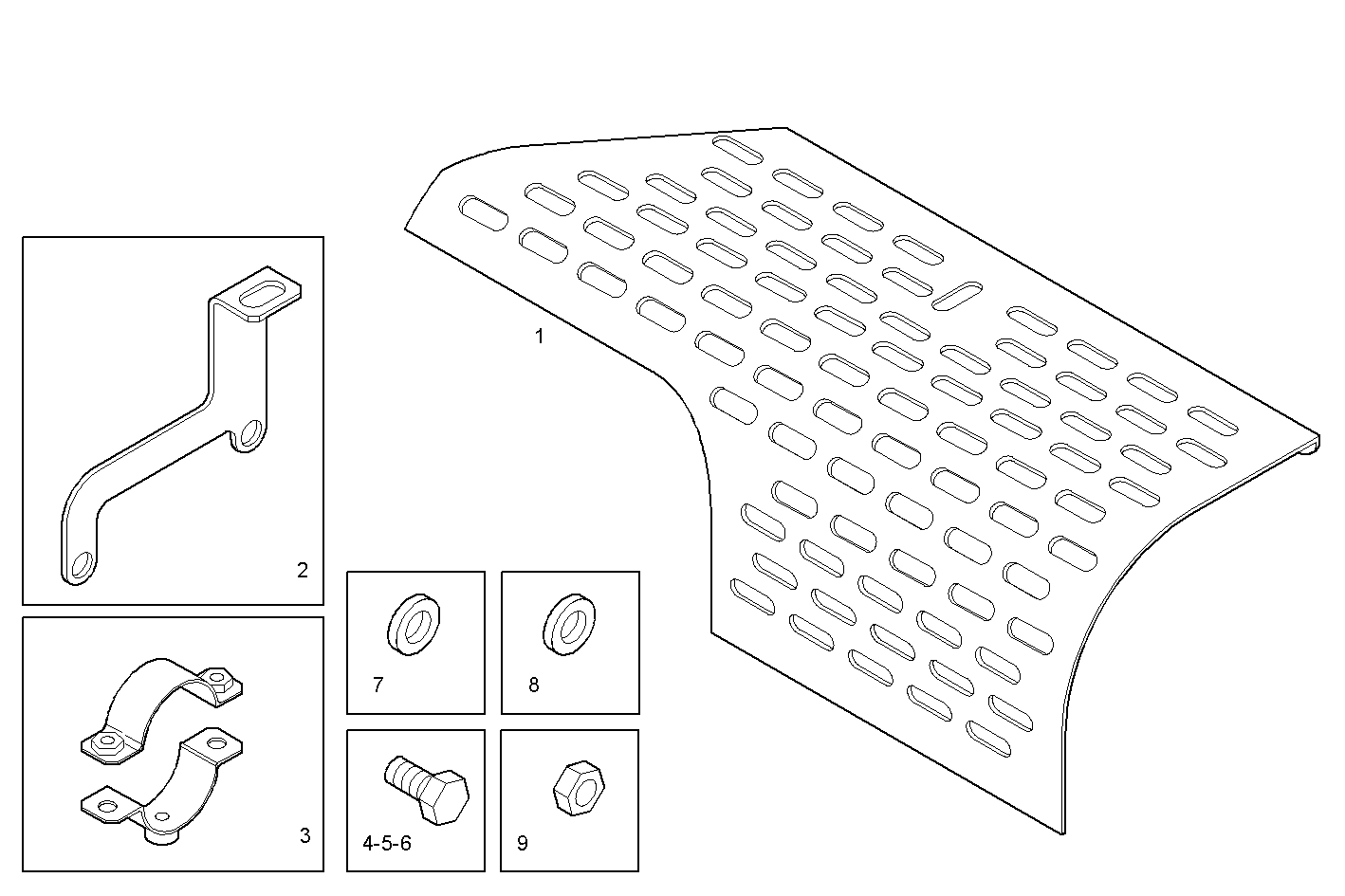

A48505007 SHIELDS - exh.manif. & turbocharg.
| Item | Part number | Description |
|---|---|---|
| 1 | 503113345 | PROTECTION |
| 2 | 503113346 | FASTENING BRACKET |
| 3 | 503113347 | CLIP |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 16605424 | SCREW M8X16 MM (8.8) |
| 6 | 16605324 | SCREW M8X12 |
| 7 | 17094904 | WASHER Ø8X16X1,6 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037925 | HEXAGON NUT M8X1,25 |
