NEF45TM2X.R981

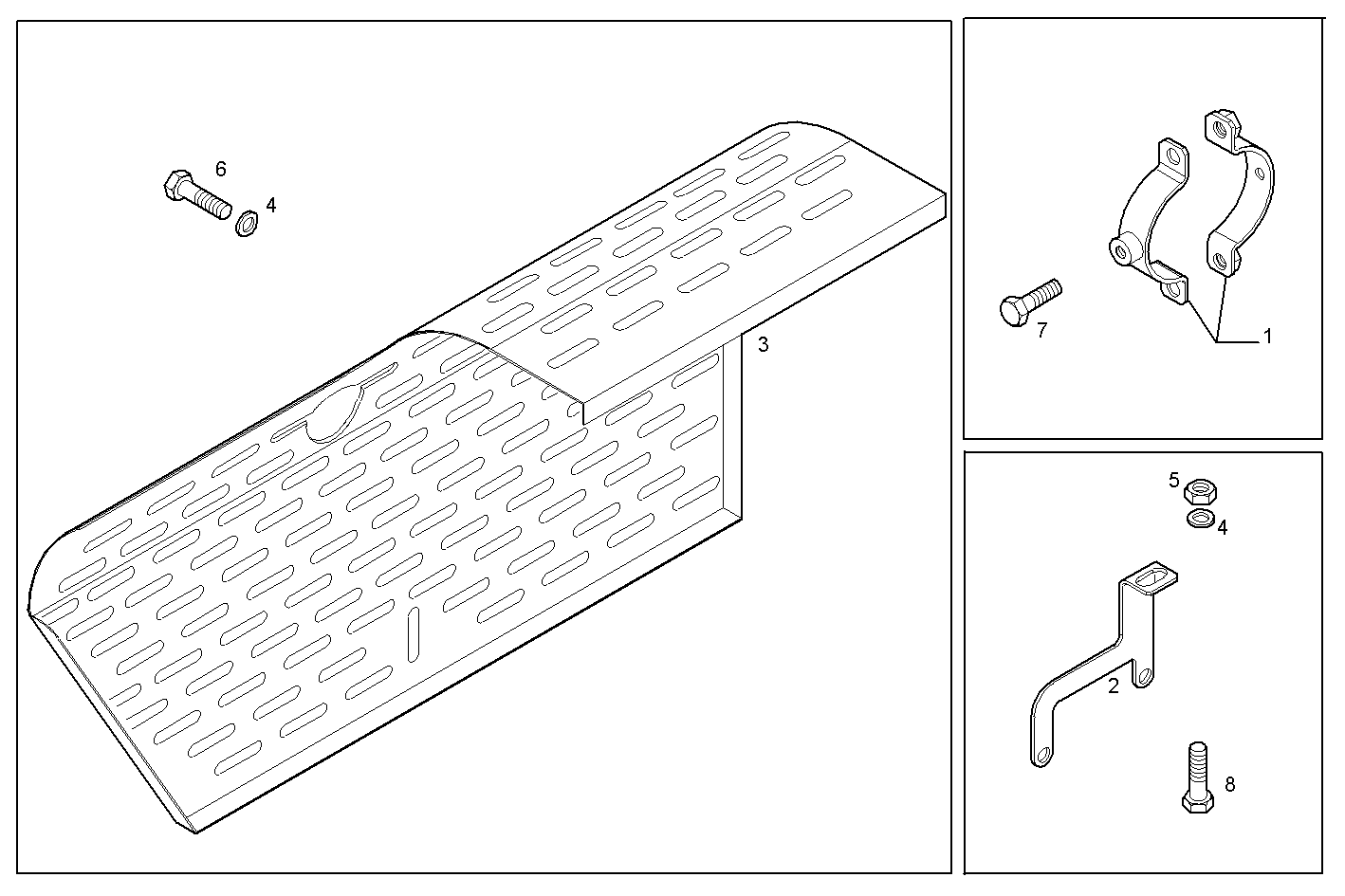

A48505008 SHIELDS - exh.manif. & turbocharg.

Iveco/FPT SHIELDS

Item Part number Description
1 503113347 CLIP
2 503113346 FASTENING BRACKET
3 503113345 PROTECTION
4 17094904 WASHER Ø8X16X1,6 MM
5 17037925 HEXAGON NUT M8X1,25
6 16605534 HEXAGON BOLT M8X20 MM (10.9)
7 16605424 SCREW M8X16 MM (8.8)
8 16605324 SCREW M8X12
