NEF60TE1.A001

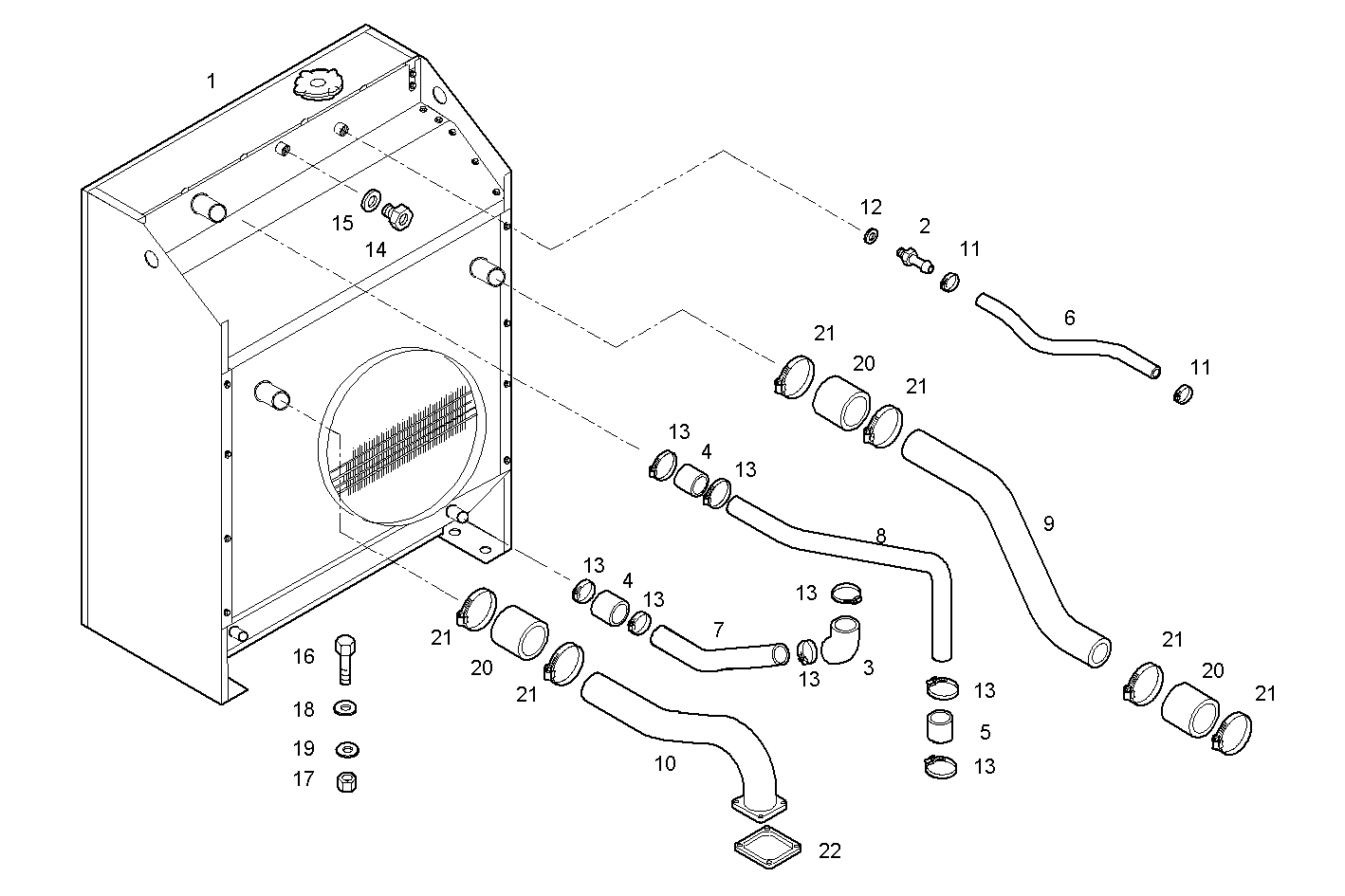

A22010507 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8037308 | WATER RADIATOR |
| 2 | 4935134 | OIL LINE |
| 3 | 8034192 | WATER HOSE |
| 4 | 4863960 | WATER HOSE |
| 5 | 4863962 | WATER HOSE |
| 6 | 8034635 | BREATHER PIPE |
| 7 | 8035527 | WATER PIPE |
| 8 | 8036913 | WATER PIPE |
| 9 | 8036923 | AIR PIPE/DUCT |
| 10 | 8036924 | AIR PIPE/DUCT |
| 11 | 18087991 | CLIP �8/16 MM |
| 12 | 4858607 | WASHER �12X17 MM SP=1,5 MM |
| 13 | 17764892 | PIPE CLIP �40-60 MM |
| 14 | 4935727 | PIPE SOCKET |
| 15 | 10284460 | SEAL GASKET �10X16 MM |
| 16 | 16612224 | HEXAGON BOLT M14X30 MM |
| 17 | 17038725 | NUT M14 |
| 18 | 17091674 | WASHER �14X27X3,0 MM |
| 19 | 17095524 | WASHER |
| 20 | 98443275 | TURBOCHARGER HOSE |
| 21 | 18089191 | CLIP |
| 22 | 4899921 | FLAT ENGINE GASKET |
