NEF67TE2X.R981

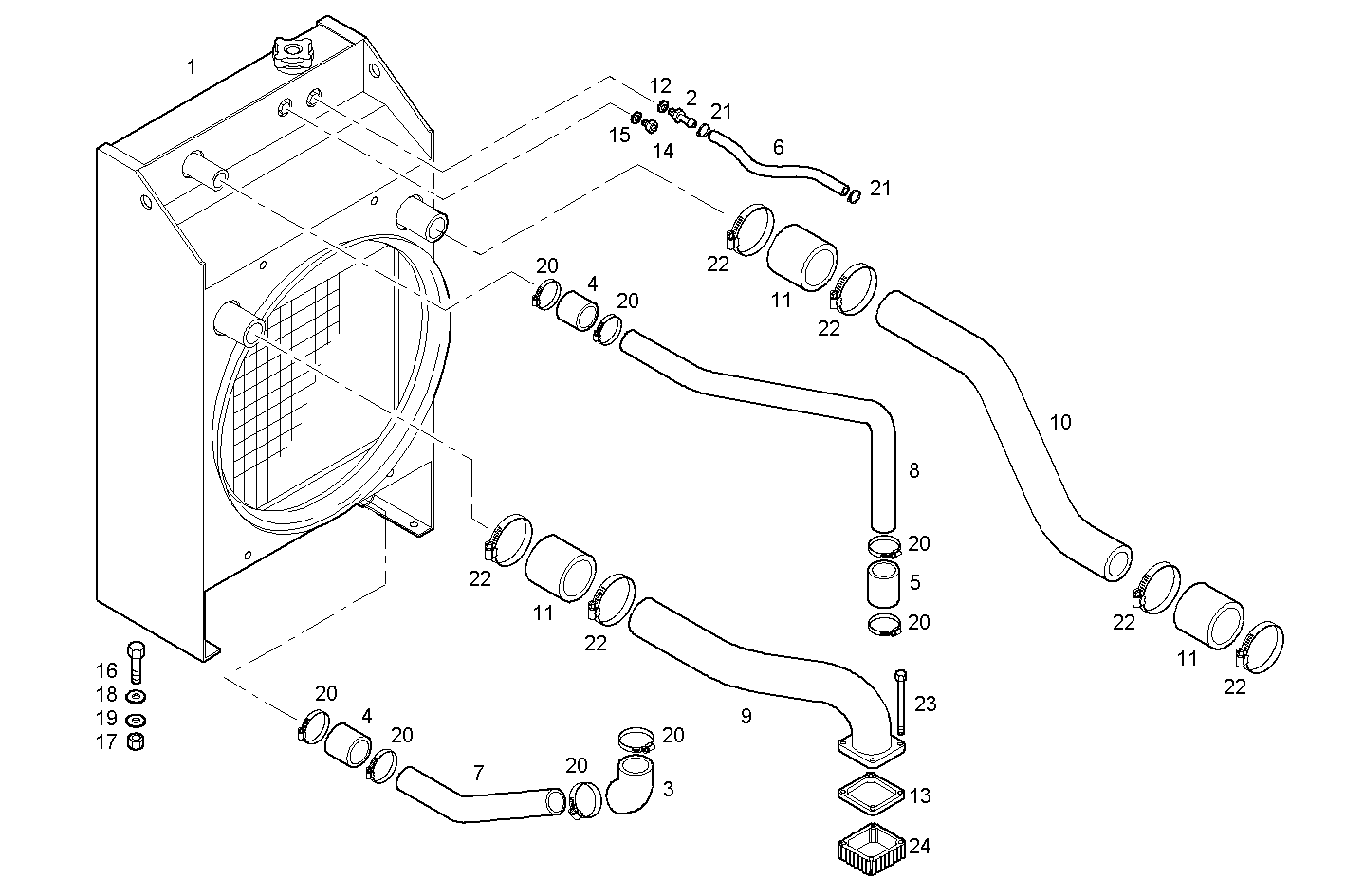

A22010520 RADIATOR 2 CIRCUITS AIR/WATER
| Item | Part number | Description |
|---|---|---|
| 1 | 8039683 | WATER RADIATOR ASSY |
| 2 | 4935134 | OIL LINE |
| 3 | 8034192 | WATER HOSE |
| 4 | 8040142 | RUBBER SLEEVE Ø45x70 MM |
| 5 | 8043775 | WATER HOSE |
| 6 | 8034635 | BREATHER PIPE |
| 7 | 8035527 | WATER PIPE |
| 8 | 8039832 | WATER PIPE |
| 9 | 8044858 | AIR PIPE/DUCT |
| 10 | 8036923 | AIR PIPE/DUCT |
| 11 | 98443275 | TURBOCHARGER HOSE |
| 12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 13 | 4899921 | FLAT ENGINE GASKET |
| 14 | 4935727 | PIPE SOCKET |
| 15 | 10284460 | SEAL GASKET Ø10X16 MM |
| 16 | 16612224 | HEXAGON BOLT M14X30 MM |
| 17 | 17038725 | NUT M14 |
| 18 | 17091674 | WASHER Ø14X27X3,0 MM |
| 19 | 17095524 | WASHER |
| 20 | 17764892 | PIPE CLIP Ø40-60 MM |
| 21 | 18087993 | CLIP Ø8/16 MM |
| 22 | 18089191 | CLIP |
| 23 | 16592625 | HEXAGON BOLT M8X80 MM |
| 24 | 4895648 | SPACING BAR |
