NEF67TE3F.S550

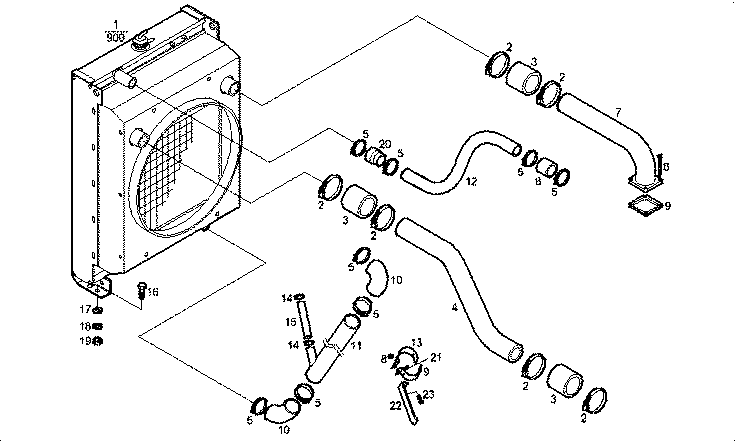

134118 OVERSIZE RADIATOR
| Item |
Part number |
Description |
|
1 |
5801599985 |
WATER RADIATOR ASSY |
|
2 |
18089094 |
CLIP |
|
3 |
5801600063 |
RUBBER SLEEVE |
|
4 |
5801613671 |
AIR PIPE/DUCT |
|
5 |
17764892 |
PIPE CLIP Ø40-60 MM |
|
6 |
8040142 |
RUBBER SLEEVE Ø45x70 MM |
|
7 |
5801613660 |
AIR PIPE/DUCT |
|
8 |
17045731 |
NUT M8X1,25 |
|
9 |
8113296 |
CLAMP Ø50 MM |
|
10 |
8048357 |
WATER HOSE |
|
11 |
8046189 |
WATER PIPE |
|
12 |
8046339 |
WATER PIPE |
|
13 |
8113295 |
CLAMP Ø50 MM |
|
14 |
18087993 |
CLIP Ø8/16 MM |
|
15 |
18223480 |
HOSE |
|
16 |
16612224 |
HEXAGON BOLT M14X30 MM |
|
17 |
17095524 |
WASHER |
|
18 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
19 |
17038725 |
NUT M14 |
|
20 |
8048889 |
WATER HOSE |
|
21 |
4565875 |
RUBBER PAD |
|
22 |
8046930 |
RETAINER |
|
23 |
16673735 |
HEXAGON BOLT M8X25 MM |
