NEF6TAGE2.A002

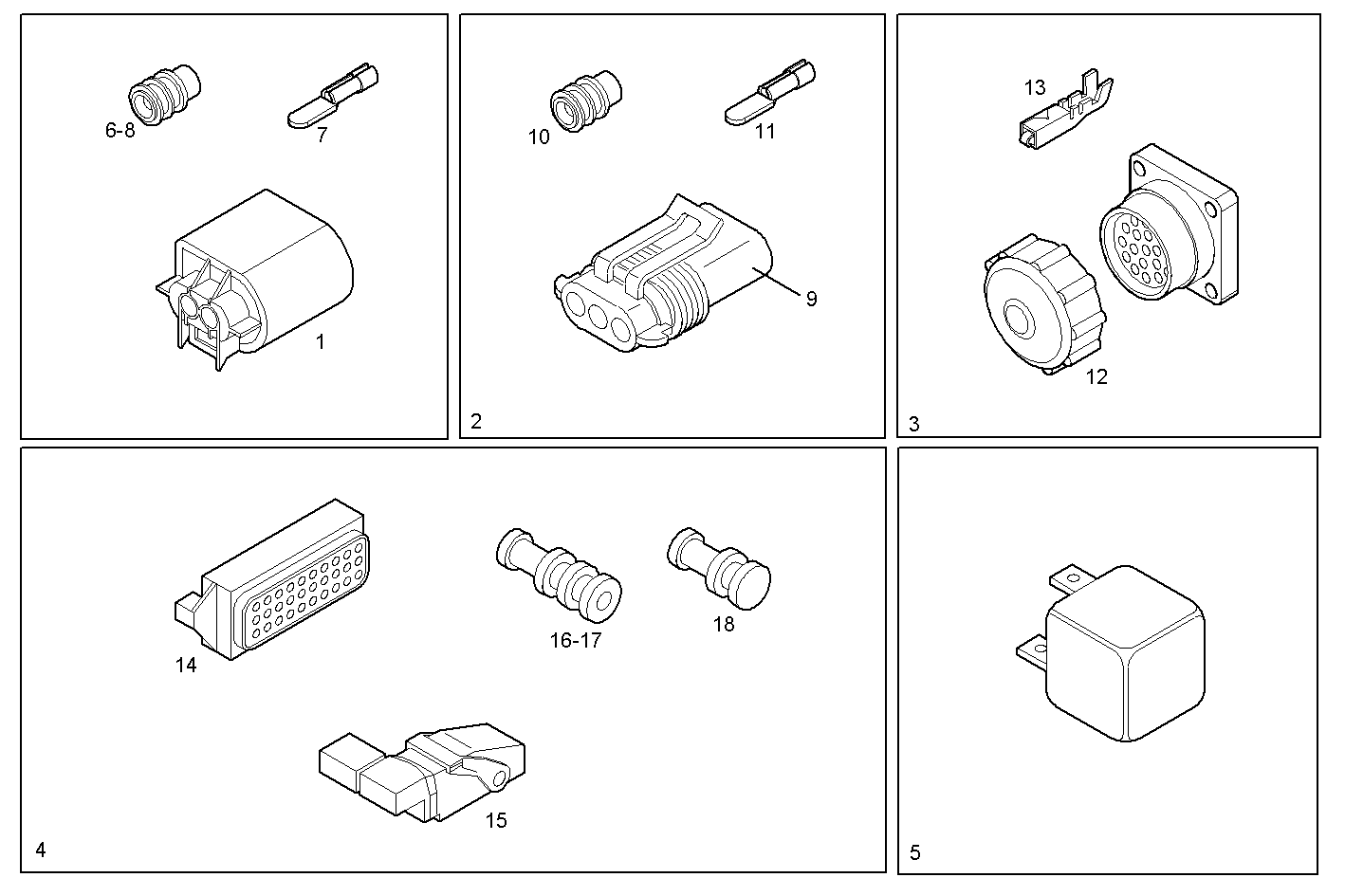

8600.115 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8030896 | CONNECTION assy for alternator |
| 2 | 8033193 | CONNECTION ASSY |
| 3 | 8034787 | WIRE CONNECTOR ASSY |
| 4 | 8034788 | CONNECTION ASSY |
| 5 | 504040825 | DIODE PLATE |
| 6 | 4835259 | GASKET |
| 7 | 12309290 | TERMINAL |
| 8 | 98420215 | PLUG |
| 9 | 12331487 | CONNECTION |
| 10 | 12332885 | GASKET |
| 11 | 12331654 | TERMINAL |
| 12 | 8033302 | CAP |
| 13 | 99462549 | TERMINAL |
| 14 | 500382735 | WIRE CONNECTOR 89 pin for "E.D.C." |
| 15 | 500382740 | COVER |
| 16 | 500382761 | RUBBER BUSH BLUE |
| 17 | 500382764 | RUBBER BUSH |
| 18 | 500382765 | RUBBER PLUG |
