PPVZ2883X*Q400

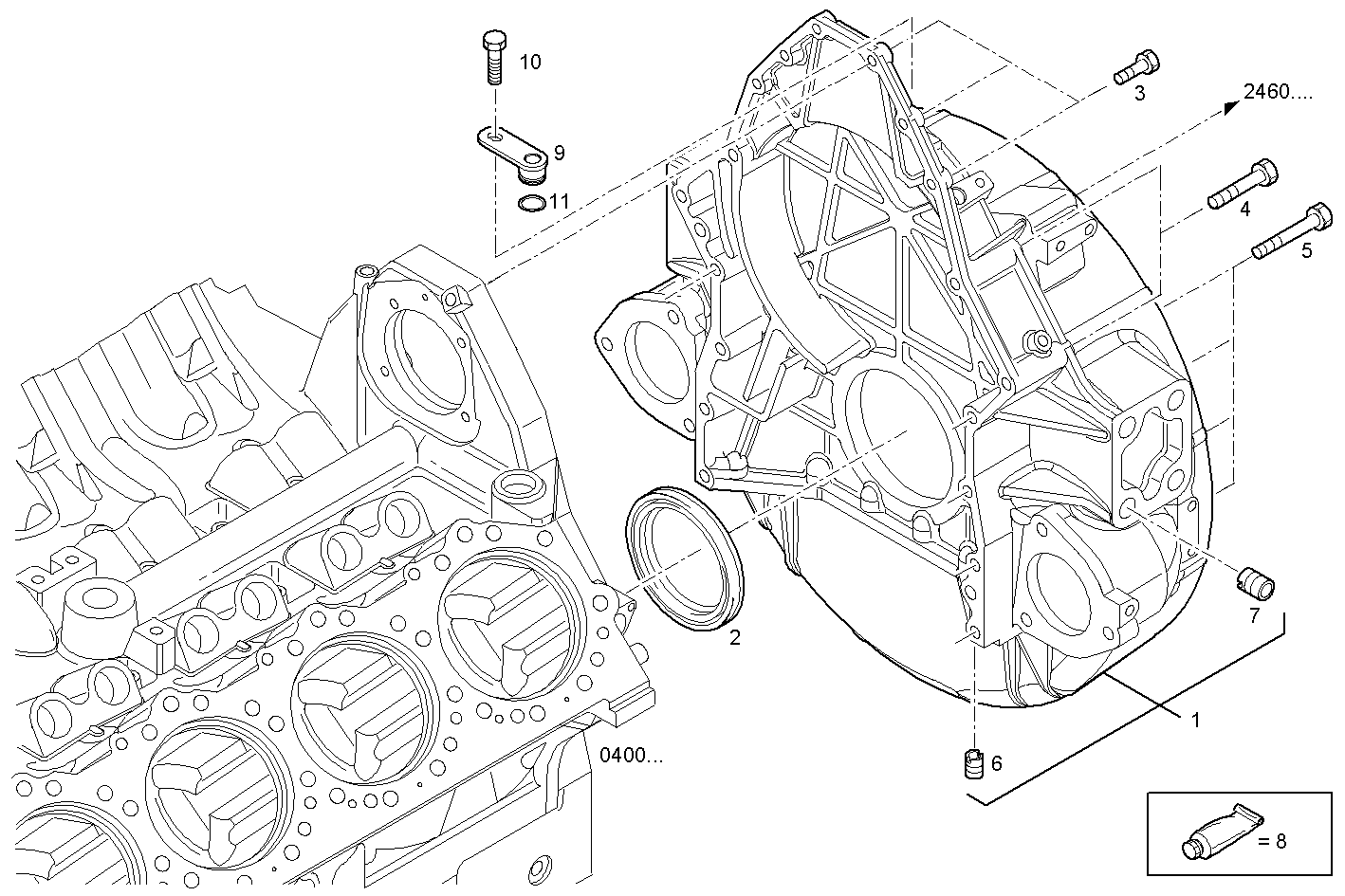

0435.005 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 504058121 | REAR C.CASE COVER ASSY |
| 2 | 504036095 | SHAFT SEAL Ø135X160X13/14 |
| 3 | 16677935 | HEXAGON BOLT |
| 4 | 16681335 | HEXAGON BOLT M14X90 |
| 5 | 16681534 | HEXAGON BOLT M14X2X110 |
| 6 | 17873371 | THREADED INSERT M10X1,5 |
| 7 | 500323467 | THREADED INSERT |
| 8 | 2992504 | ADHESIVE/STICKER LOCTITE |
| 9 | 504090317 | COVER |
| 10 | 16597925 | HEXAGON BOLT M8X14 MM |
| 11 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
