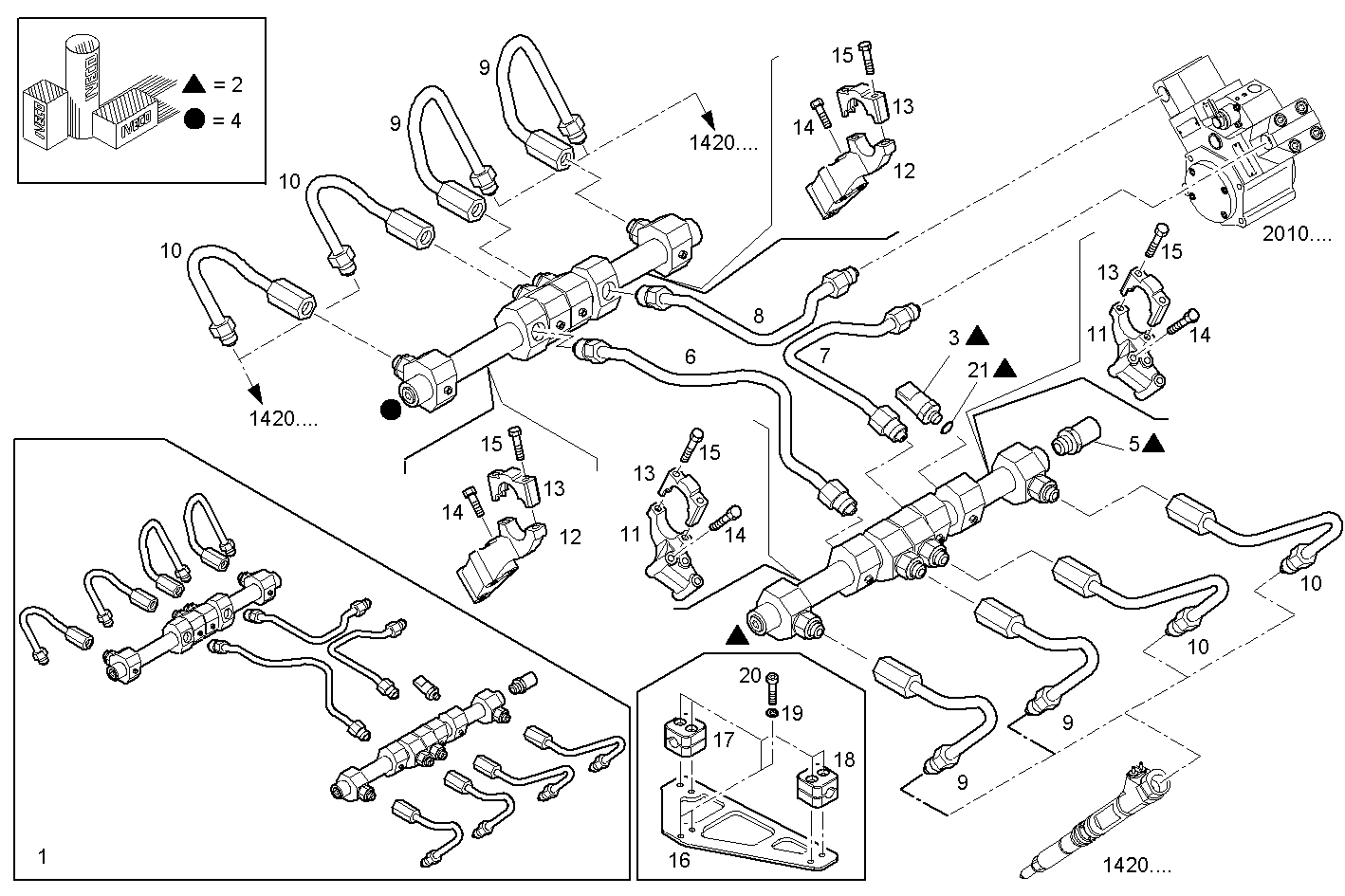

| Item |
Part number |
Description |
|
1 |
504215520 |
INJECTION LINE SET ASSY |
|
2 |
504215523 |
HYDRAULIC CYLINDER LEFT ASSY |
|
3 |
504043154 |
SENSOR |
|
4 |
504215527 |
HYDRAULIC CYLINDER RIGHT ASSY |
|
5 |
504043158 |
VALVE |
|
6 |
504215536 |
FUEL LINE |
|
7 |
504215534 |
FUEL LINE |
|
8 |
504215535 |
FUEL LINE |
|
9 |
504215530 |
FUEL LINE |
|
10 |
504215533 |
FUEL LINE |
|
11 |
504080479 |
SUPPORT RIGHT ASSY |
|
12 |
504080488 |
SUPPORT LEFT ASSY |
|
13 |
504039185 |
COVER |
|
14 |
16586925 |
HEXAGON BOLT M8X50 MM |
|
15 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
16 |
504097534 |
SUPPORT |
|
17 |
504097548 |
CHOCK |
|
18 |
504097549 |
CHOCK |
|
19 |
17094611 |
WASHER |
|
20 |
16689425 |
SOCKET-HEAD SCREW |
|
21 |
504120835 |
SEAL GASKET |
